Center Water Drain Channel, Removing And Installing

Special tools and workshop equipment required

• Roller 3356
• Adhesive Strip Remover VAS6349
• Cleaning Solution -D 009 401 04-

Procedure

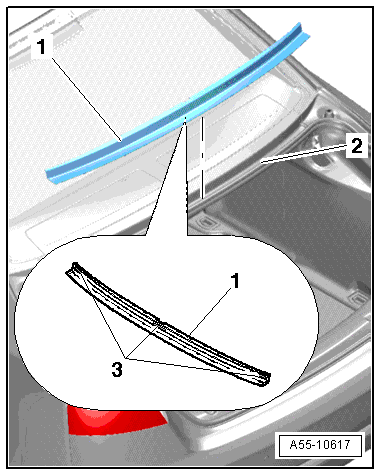

Fig 1: Identifying Center Water Drain Channel

Courtesy of AUDI OF AMERICA, LLC

-- The water drain channel is self-adhesive. Heating the adhesive surfaces with a hot air blower makes it easier to remove.

-- Adhesion surfaces must be free of dust and grease, clean with Cleaning Solution D 009 401 04.

-- Peel off the protective film, install the water drain channel under the rear window and push it onto the body flange.

-- Press on the surface with a Roller 3356.
