Gap Dimensions

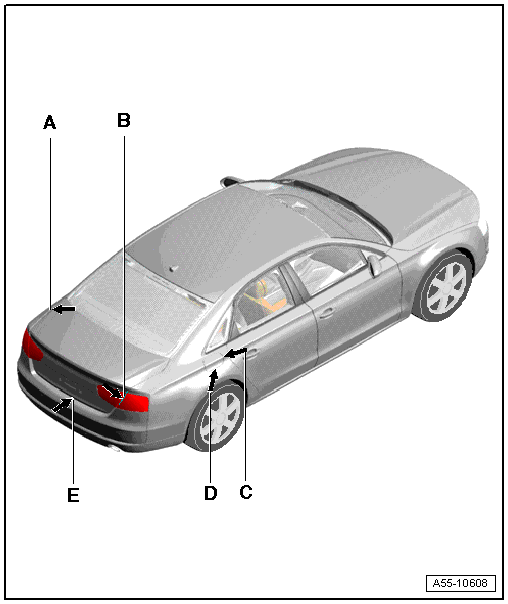

Fig 1: Identifying Gap Dimensions

Courtesy of AUDI OF AMERICA, LLC

-- Adjust the rear lid according to the gap dimensions.

• -A- = 3.5 ± 0.5 mm
• -B- = 3.5 ± 0.5 mm
• -C- = front and rear 2.2 mm
• -D- = top and bottom 2 mm
• -E- = 5 ± 0.5 mm

Height Adjustment

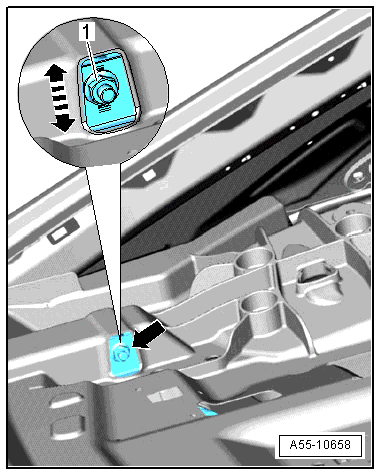

Fig 2: Adjusting Height

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear shelf, refer to Passenger Compartment Trim .

-- Loosen the nut -1- and slide it in the direction of -arrow- up or down to adjust the height of the rear lid at the front.

-- After adjusting, tighten the nut on the hinge to 20 Nm.

-- The rear height can be adjusted by sliding the striker pin -1-.

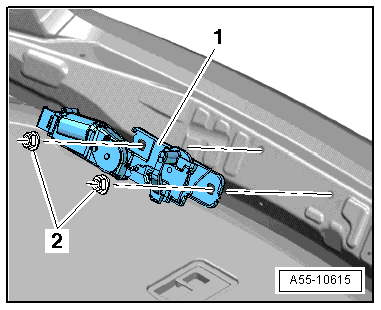

Fig 3: Identifying Striker Pin

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the nut -2-, slide it accordingly and tighten the nuts to the specification.
