Rear Lid Lock Emergency Release

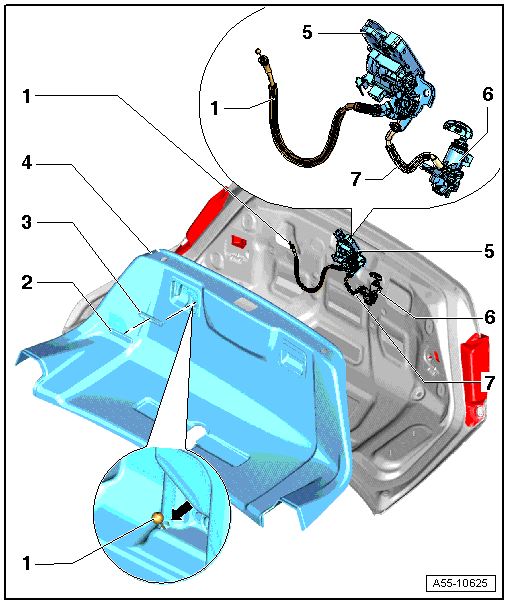

Fig 1: Identifying Rear Lid Lock Emergency Release
GWWA55-10625Courtesy of AUDI OF AMERICA, LLC
  1. Emergency Unlock Release
    • Before removing, remove the cover on the lid lock
    • First unclip from the cable bracket on the lid lock and then disengage from the operating lever.
  2. Hood Release Lever Cover
    • Unclip
  3. Emergency Release Operating Lever
    • When installing, first engage the release cable on the operating lever and then press it into the cable bracket on the lid lock.
  4. Lid Trim
  5. Rear Lid Latch
  6. Lock Cylinder
  7. Hood Latch Cable
