Rear Lid Latch, Removing And Installing

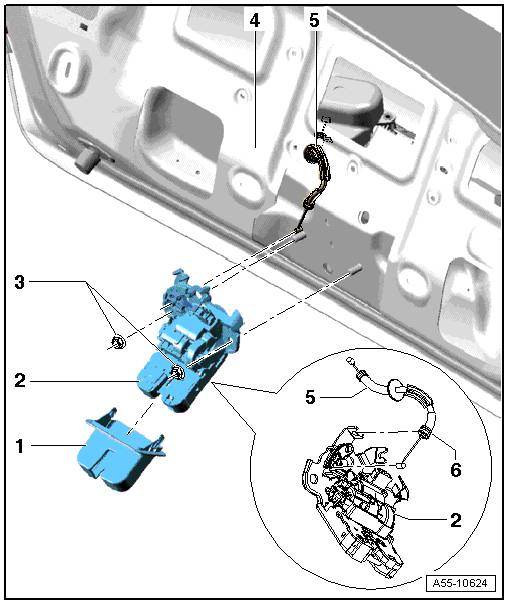

Fig 1: Identifying Rear Lid Latch
GWWA55-10624Courtesy of AUDI OF AMERICA, LLC
  1. Cover
    • Before removing, remove the lid trim from the lid lock.
  2. Rear Lid Latch
    • Before removal, remove lid lock cover.
    • The rear lid trim panel is removed, refer to Luggage Compartment Trim Panels .
    • Disconnect the connector.
    • If necessary, disengage the emergency release cable.
    • Remove nuts and remove lid lock.
  3. Nut
    • 23 Nm
