Overview - Rear Lid, Gas-Filled Strut

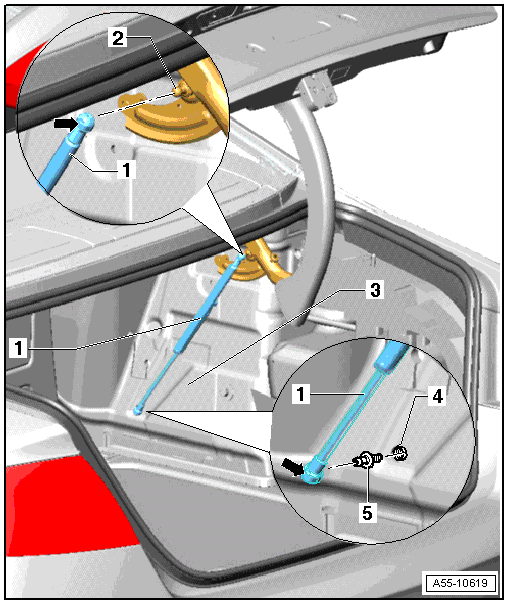

Fig 1: Overview Of Rear Lid, Gas-Filled Strut
GWWA55-10619Courtesy of AUDI OF AMERICA, LLC
  1. Gas-Filled Strut
  2. Ball Pin
    • No replacement part
  3. Side Panel
  4. Internally Threaded Pop Rivet
  5. Ball Pin
    • 23 Nm
