Rear Lid Hinge, Removing And Installing: Notes

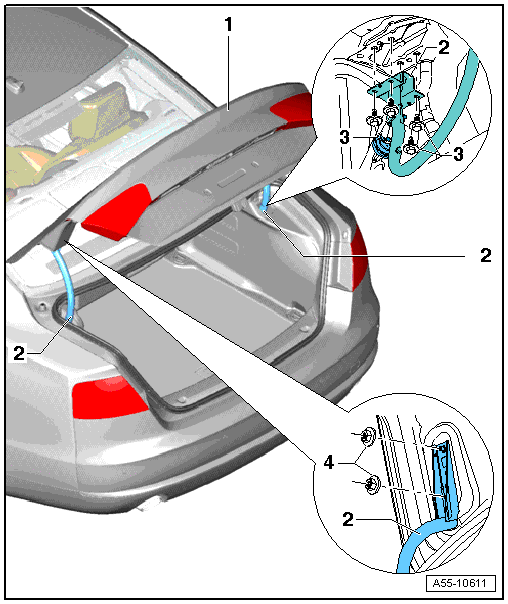

Fig 1: Identifying Rear Lid Hinge

GWWA55-10611

Courtesy of AUDI OF AMERICA, LLC

Lid
Rear Lid Hinge
NOTE:
The Rear Lid Motor 1 -V444-, on the left side, must be removed first, depending on the equipment level, refer to OVERVIEW - REAR LID, REAR LID MOTOR .
- Removing:
  -- Remove the nuts on the rear lid.

  -- Remove the screws over the rear shelf and the hinge.
- Installing:
  -- Insert the hinge under the rear shelf and secure it lightly using the bolts.

  -- Slide the hinge in just far enough until it can be secured in the holes with two 7.5 mm drill bits Rear Lid Hinge Securing Hole .

  -- Tighten the hinge bolts -3- to the tightening specification.

  -- Position the lid on the hinge and secure it using the nuts.

  -- Engage the spring and the gas-filled strut.

  -- Close the lid carefully.

  -- Align the lid sideways and lengthwise.

  -- Tighten the nuts on the rear lid and the bolts on the body side.
Bolt
- 34 Nm
Nut
- 34 Nm
