Overview - Release Cable, Release Cable Cover

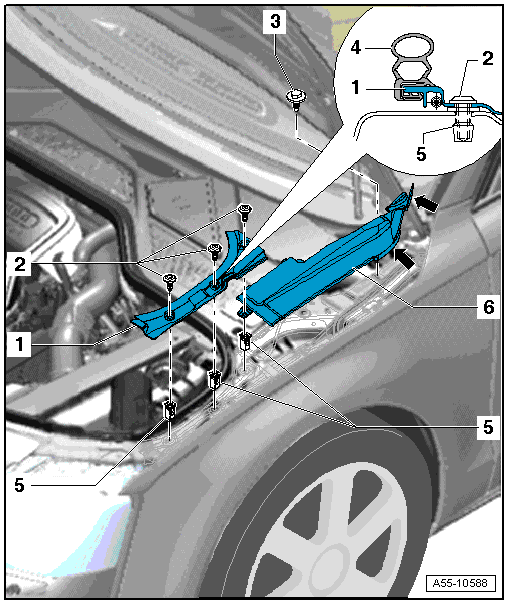

Fig 1: Overview Of Release Cable, Release Cable Cover

Courtesy of AUDI OF AMERICA, LLC

Front Cover
- First remove the seal in the area around the cover and then remove the bolts -2-.
Bolt
- 3 Nm
Bolt
- 6 Nm
Seal
Clip
Left Plenum Chamber Cover
- Removing
  -- Remove the front cover.

  -- Remove the center plenum chamber cover.

  -- Remove the bolt -3-.

  -- Remove the cover from the plenum chamber cover and from under the fender.
- Installing
  -- Insert the side tabs into the plenum chamber cover.

  -- The projections -arrows- must be inserted under the fender.
