Overview - Hood, Gas-Filled Strut

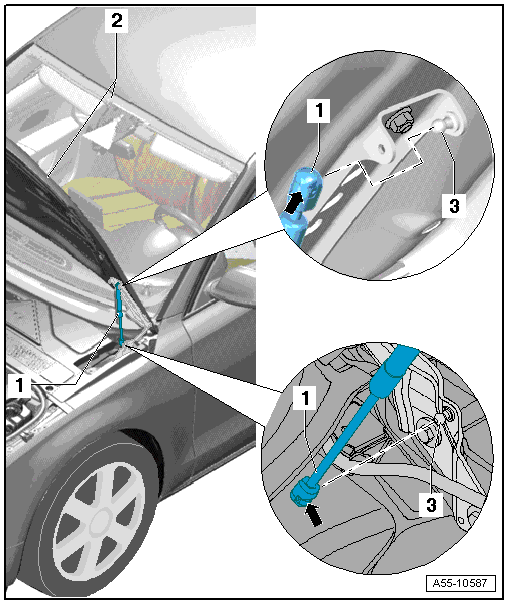

Fig 1: Overview Of Hood, Gas-Filled Strut
GWWA55-10587Courtesy of AUDI OF AMERICA, LLC
  1. Gas-Filled Strut
    • To remove securing spring -arrow-, raise slightly and remove gas-filled strut from ball stud.
      NOTE:

      Ensure correct positioning during installation: the gas-filled strut tube must be attached on the lid side.

  2. Hood
  3. Ball Pin
    • No replacement part
