Hood, Adjusting

Special tools and workshop equipment required

• Gauge - Gap Adjustment3371

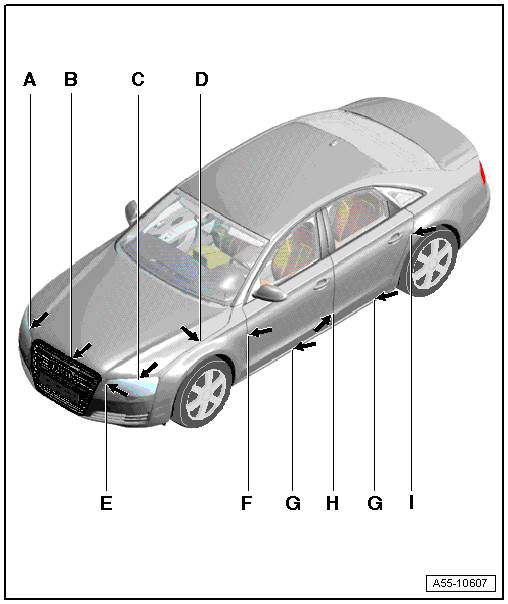

Gap Dimensions for Hood

Fig 1: Adjusting Hood

Courtesy of AUDI OF AMERICA, LLC

• Dimension -A- = 5.0 mm
• Dimension -B- = 4.5 mm
• Dimension -C- = 5.0 mm
• Dimension -D- = 3.0 mm
• Dimension -E- = 2.5 mm

Fig 2: Height Adjustment Stop Buffer

Courtesy of AUDI OF AMERICA, LLC

• The adjusting buffer -2- must lightly contact the lock carrier when the hood is closed.
• The rubber buffer -1- also works as a strike guard.
