Hood Catch, Removing And Installing, Vehicles Without Pedestrian Protection

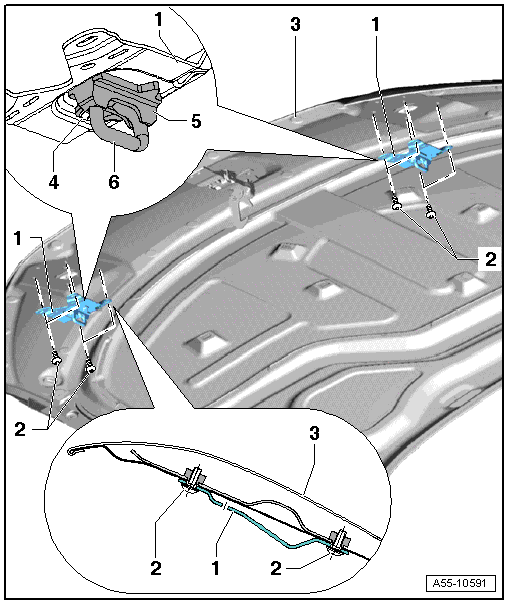

Fig 1: Identifying Hood Catch, Vehicles Without Pedestrian Protection

Courtesy of AUDI OF AMERICA, LLC

1. Hood Catch Bracket
   • To remove, remove bolts -2-.
2. Bolt
   • 11 Nm
3. Hood
4. Bolt
   • 1 Nm
5. Anti-Twist Mechanism
   • No replacement part
6. Hood Catch
   • Note different versions.
   • Remove bolt for adjusting the height of the hood -5- and remove the anti-twist mechanism over the hood catch.
   • Install or remove the bracket for adjusting the hood.
   • Tighten the anti-twist mechanism.
