Cylinder Bank 2 (Left) Ignition Coils, Removing

-- Lift the clamps -1 and 4- and remove the coolant hoses.

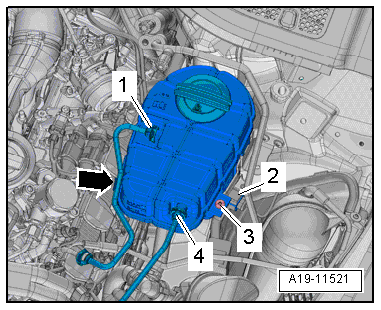

Fig 1: Clamps & Coolant Hoses

Courtesy of AUDI OF AMERICA, LLC

-- Free up the coolant hose -arrow-.

-- Disconnect the connector -2-.

-- Remove the bolt -3-.

-- Remove the coolant expansion tank upward from the bracket and press it forward.

-- Free up the coolant hoses -3- and air guide hose -1- at the wiring guide -2-.

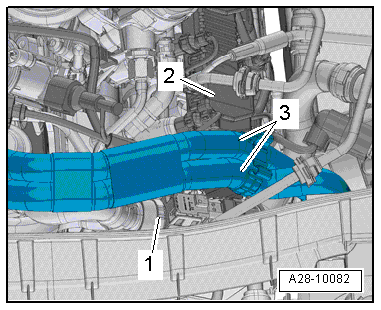

Fig 2: Identifying Coolant Hoses

Courtesy of AUDI OF AMERICA, LLC

-- Remove the connectors -1- from the bracket -2-, disconnect them and free up the wire.

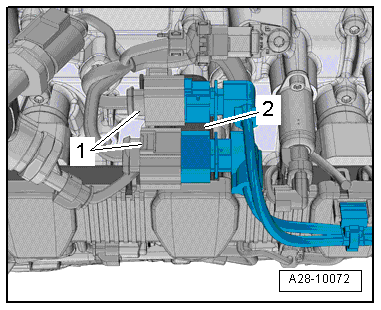

Fig 3: Identifying Connectors And Mount

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bracket upward.

-- Disconnect and free up the connectors -arrows-.

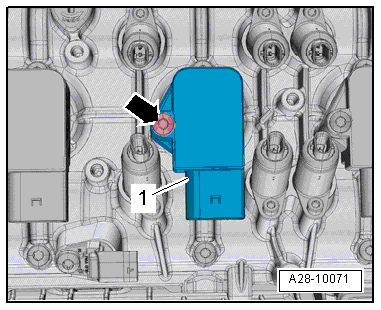

Fig 4: Identifying Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors and free up the wires:

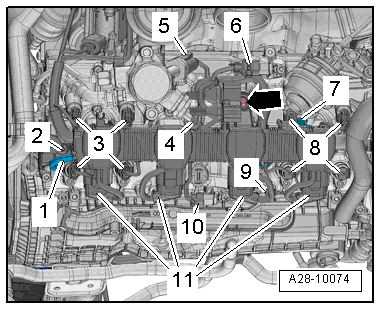

Fig 5: Identifying Connectors

Courtesy of AUDI OF AMERICA, LLC

3 -

for intake or exhaust camshaft adjuster -F464-, -F465-, -F466-, and -F467-

4 -

for Fuel Metering Valve 2 -N402-

5 -

for Low Pressure Fuel Sensor -G410-

6 -

for Camshaft Position Sensor 4 -G301-

8 -

for intake or exhaust camshaft adjuster -F476-, -F477-, -F478-, and -F479-

10 -

for Camshaft Position Sensor 2 -G163-

11 -

for ignition coils -N323-, -N324-, -N325-, and -N326-

-- Disconnect vacuum hoses -1 and 7-.

-- Remove the bolts -2 and 9- and double bolt -arrow-, free up the ground wire and tilt the wiring guide back.

-- Remove the ignition coils.

Continuation for Both Sides (Cylinder Bank 1 and 2)

-- Remove the bolt -arrow- and the ignition coil -1-.

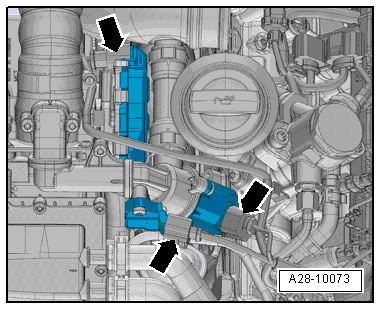

Fig 6: Identifying Ignition Coil With Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove spark plugs with Spark Plug Wrench 3122B.
