Ambient Lighting Overview

Ambient Lighting Inside The Doors

Fig 1: Identifying Ambient Lighting Inside Doors
GWWA96-10927Courtesy of AUDI OF AMERICA, LLC
  1. Driver Door Storage Compartment Illumination Bulb -L160-
  2. Driver Door Ambient Lighting Bulb -L164-
  3. Front Passenger Door Storage Compartment Illumination Bulb -L161-
  4. Front Passenger Door Ambient Lighting Bulb -L165-
  5. Right Rear Door Ambient Lighting Bulb -L167-
  6. Right Rear Ashtray Illumination Bulb -L49-
  7. Right Rear Door Storage Compartment Illumination Bulb -L171-
  8. Left Rear Door Ambient Lighting Bulb -L166-
  9. Left Rear Ashtray Illumination Bulb -L48-
  10. Left Rear Door Storage Compartment Illumination Bulb -L170-

Center Console and Sill Panel Strip Ambient Lighting

Fig 2: Identifying Center Console And Sill Panel Strip Ambient Lighting
GWWA96-10928Courtesy of AUDI OF AMERICA, LLC
  1. Fiber Optic Cable For Left Front Sill Panel Ambient Lighting -W67-
  2. Fiber Optic Cable For Right Front Sill Panel Ambient Lighting -W68-
  3. Fiber Optic Cable For Right Rear Sill Panel Ambient Lighting -W70-
  4. Center Armrest Illumination Bulb -L157- right`
  5. Center Armrest Illumination Bulb -L157- left
  6. Fiber Optic Cable For Left Rear Sill Panel Ambient Lighting -W69-

Optional Rear Center Console Ambient Lighting

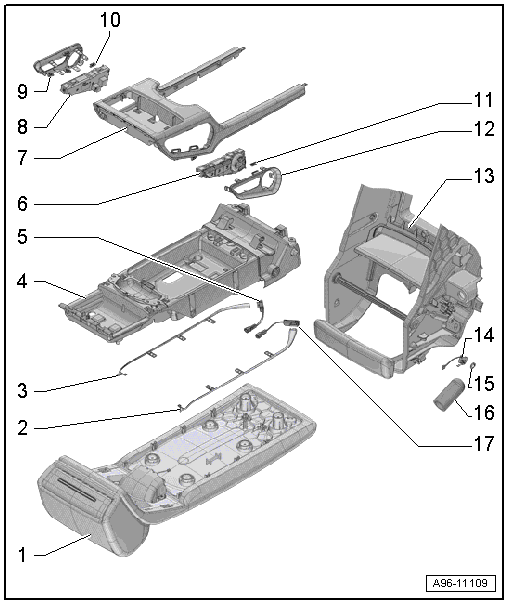

Fig 3: Identifying Optional Rear Center Console Ambient Lighting
GWWA96-11109Courtesy of AUDI OF AMERICA, LLC
  1. Center Armrest Cushion
  2. Left Fiber Optic Cable
    • For ambient lighting
  3. Right Fiber Optic Cable
    • For ambient lighting
  4. Armrest-Lower Section
  5. Right Rear Center Console Ambient Lighting Bulb 2 -L198-
  6. Left Rear Seat Massage Button -E409-
  7. Divider
    • For the center armrest
  8. Right Rear Seat Massage Button -E410-
  9. Right Trim
    • For the switch for the massage button in the rear seat
  10. Clamp
    • Quantity: 3
  11. Clamp
    • Quantity: 3
  12. Left Trim
    • For the switch for the massage button in the rear seat
  13. Center Armrest
  14. Contact Switch For The Rear Center Console Ambient Lighting -F501-
  15. Securing clip
    • Quantity: 2
  16. Grommet
  17. Left Rear Center Console Ambient Lighting Bulb 1 -L197-
