Fastener Tightening Specifications

WARNING: This page is about a different car, the 2013 Volkswagen Beetle and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Component

Fastener Size

Bracket to Cylinder Head Nut ^{1, 3}

Bracket to Charge Air Cooler Bolt

Charge Air Pipe Bolt

Charge Air Pipe Clamp

5.5

Charge Air Pressure Sensor to Charge Air Pipe Bolt

Connection to Turbocharger Bolt

Coolant Return Pipe to Turbocharger Banjo Bolt

Coolant Return Pipe to Turbocharger Bolt

Coolant Supply Pipe to Cylinder Block Banjo Bolt

Coolant Supply Pipe to Cylinder Block Bolt

Coolant Supply Pipe to Turbocharger Banjo Bolt

Oil Return Pipe to Cylinder Block Bolt

Oil Return Pipe to Turbocharger Bolt

Oil Supply Pipe to Cylinder Block Bolt

Oil Supply Pipe to Turbocharger Banjo Bolt

Oil Supply Pipe to Turbocharger Bolt

Support to Cylinder Block Bolt ⁽²⁾

Support to Turbocharger Bolt ⁽²⁾

Turbocharger Recirculation Valve to Turbocharger Bolt

Vacuum Diaphragm to Turbocharger Bolt

Wastegate Bypass Regulator Valve to Turbocharger Bolt

⁽¹⁾	Always replace after removing.

⁽²⁾	Lubricate the bolt with hot bolt paste .

⁽³⁾	Lubricate the studs of the exhaust manifold with hot bolt paste .

Turbocharger Nut Tightening Sequence and Specification

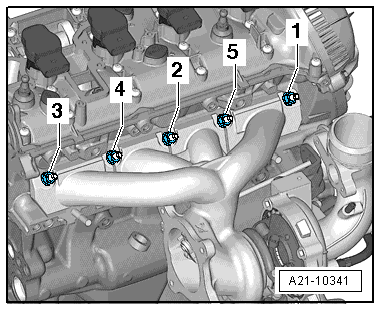

Fig 1: Turbocharger Nut Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the nuts in 4 passes in sequence -1 through 5- as follows:

First pass, tighten the nuts to 5 Nm.
Second pass, tighten the nuts to 12 Nm.
Third pass, tighten the nuts to 16 Nm.
Final pass, tighten the nuts to 25 Nm.
