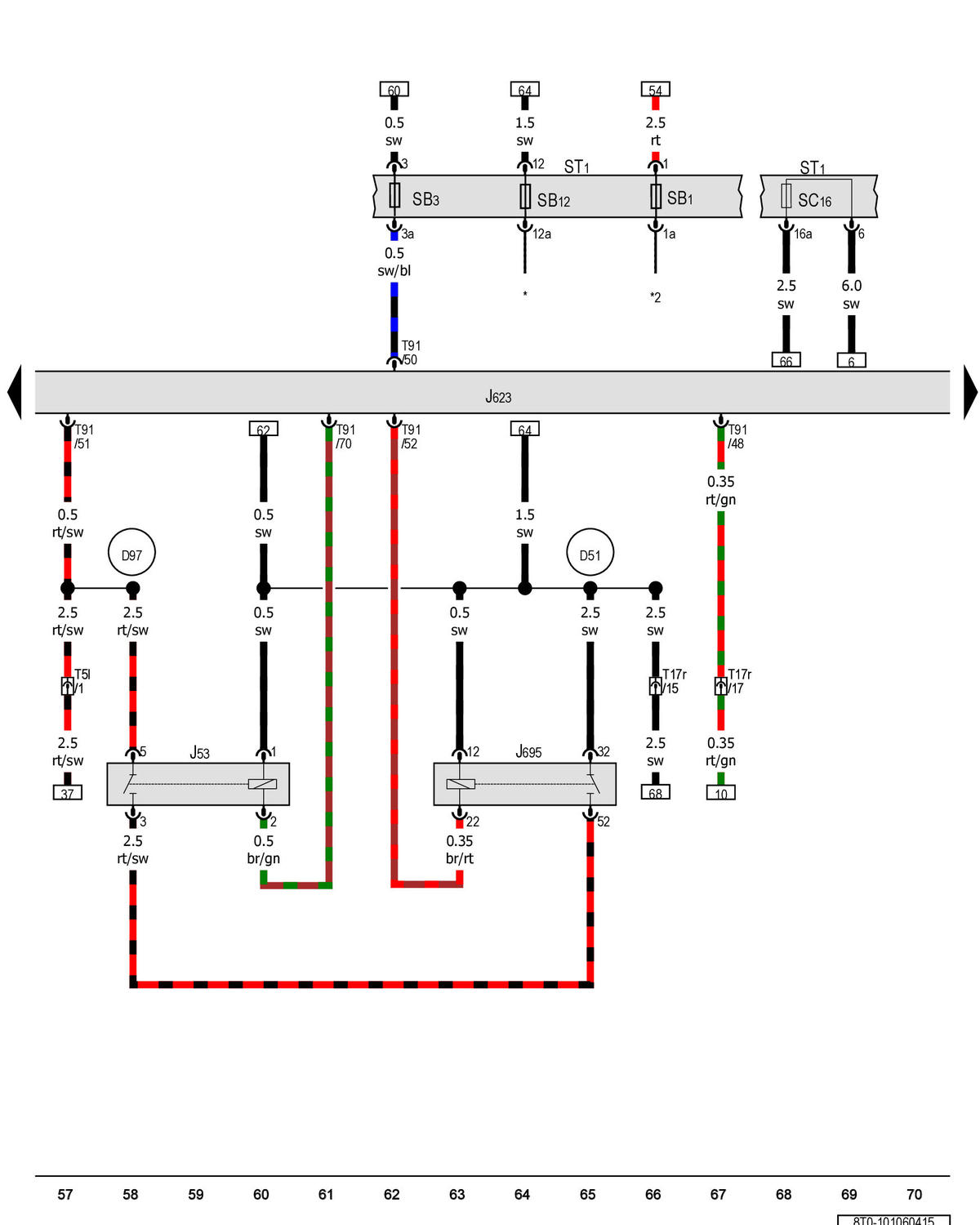

Starter Relay, Engine Control Module, Relay 2 For Starter: Notes

GWW8T0-101060415

Courtesy of AUDI OF AMERICA, LLC
