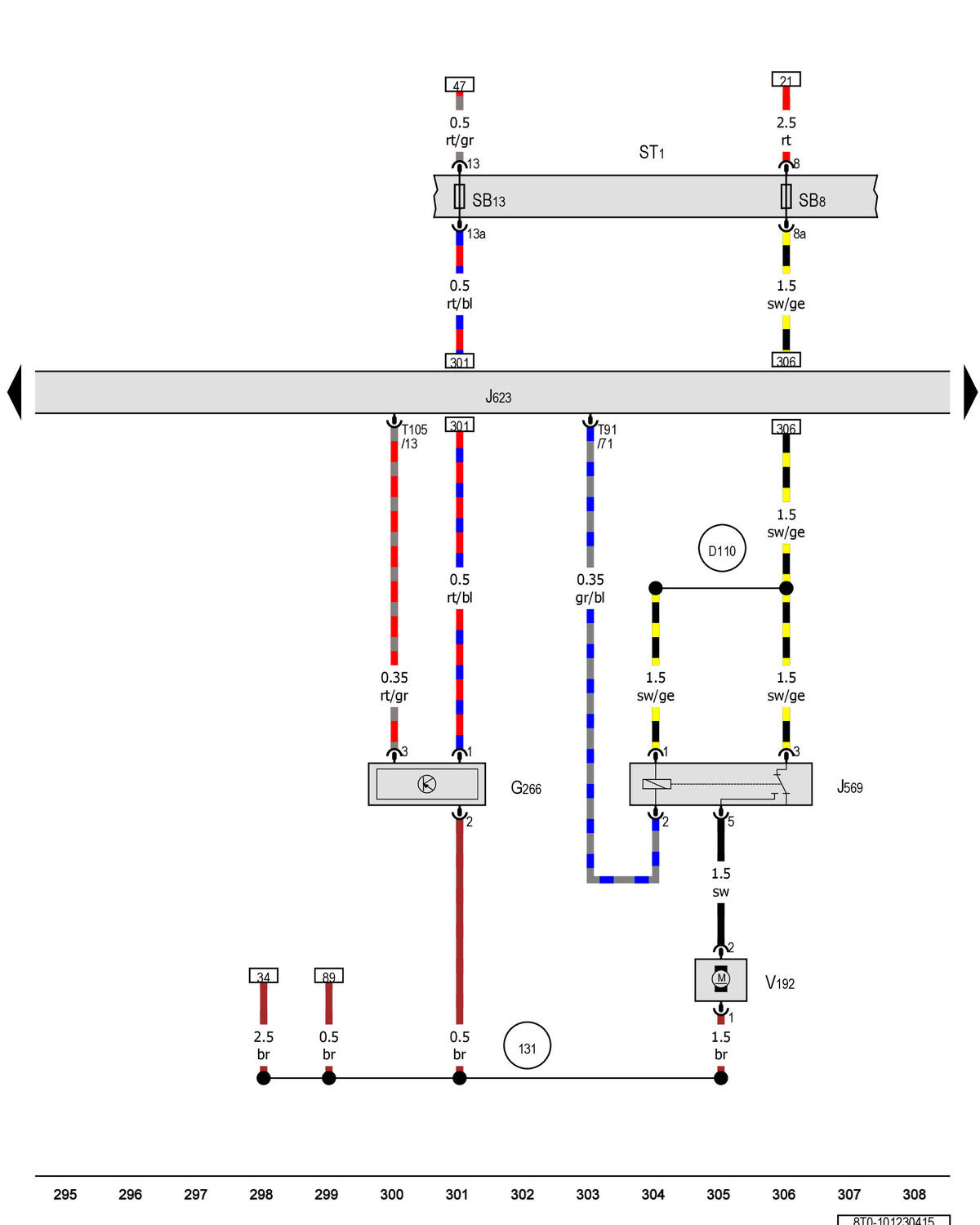

Oil Level Thermal Sensor, Engine Control Module, Brake System Vacuum Pump: Notes

GWW8T0-101230415

Courtesy of AUDI OF AMERICA, LLC
