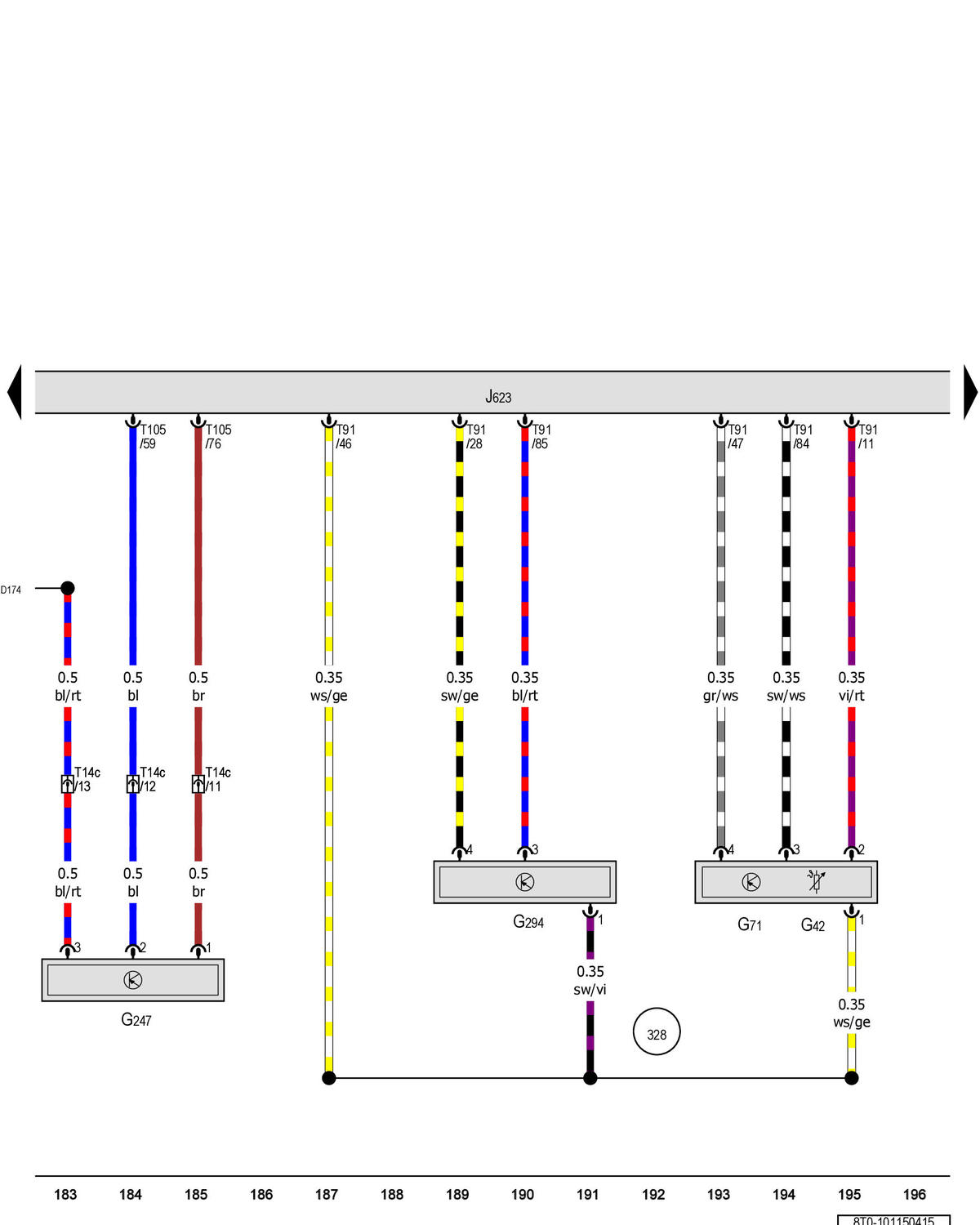

Intake Air Temperature Sensor, Fuel Pressure Sensor, Engine Control Module: Notes

GWW8T0-101150415

Courtesy of AUDI OF AMERICA, LLC
