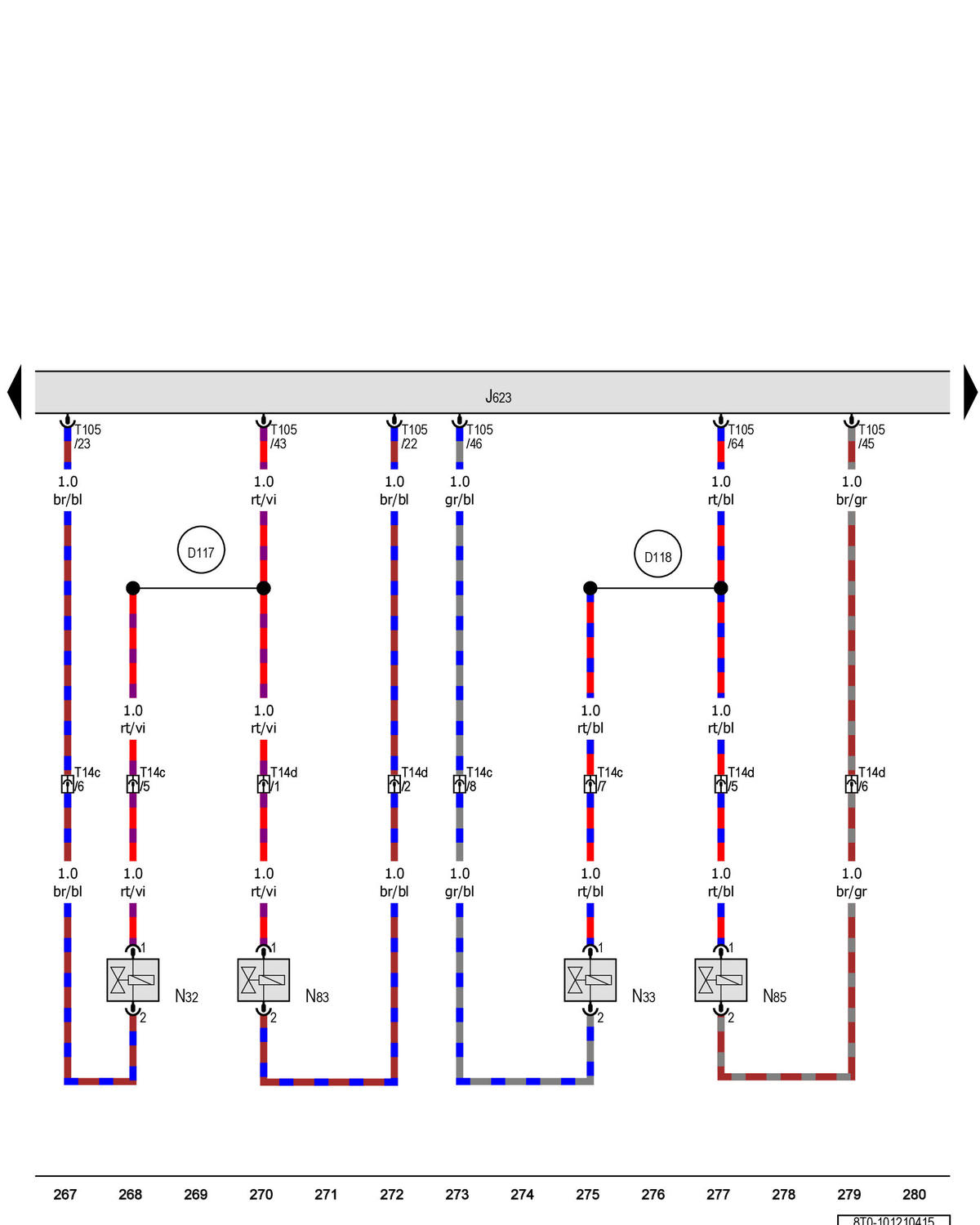

Engine Control Module, Cylinder 3 Fuel Injector, Cylinder 4 Fuel Injector, Cylinder 5 Fuel Injector, Cylinder 7 Fuel Injector: Notes

GWW8T0-101210415

Courtesy of AUDI OF AMERICA, LLC
