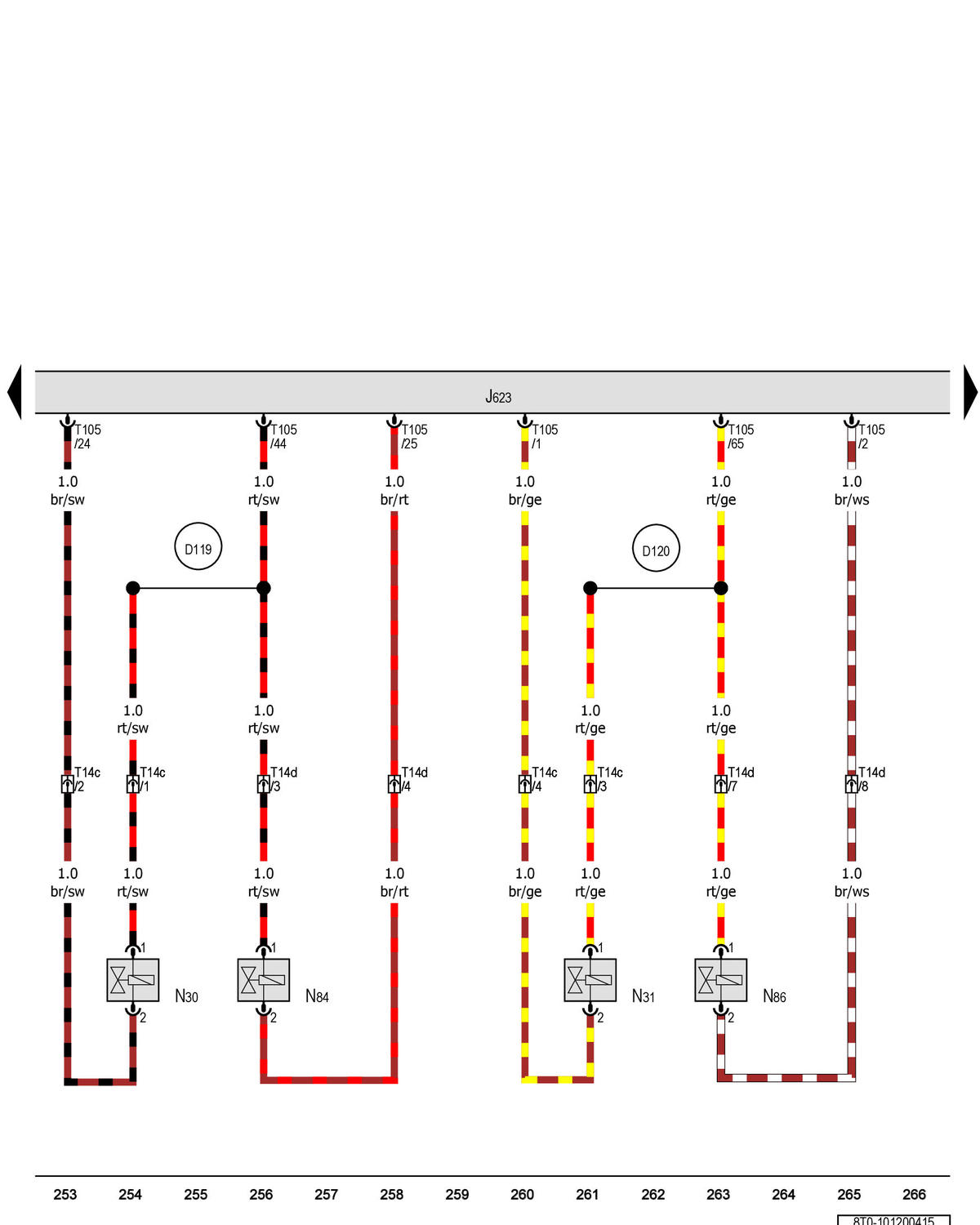

Engine Control Module, Cylinder 1 Fuel Injector, Cylinder 2 Fuel Injector, Cylinder 6 Fuel Injector, Cylinder 8 Fuel Injector: Notes

GWW8T0-101200415

Courtesy of AUDI OF AMERICA, LLC
