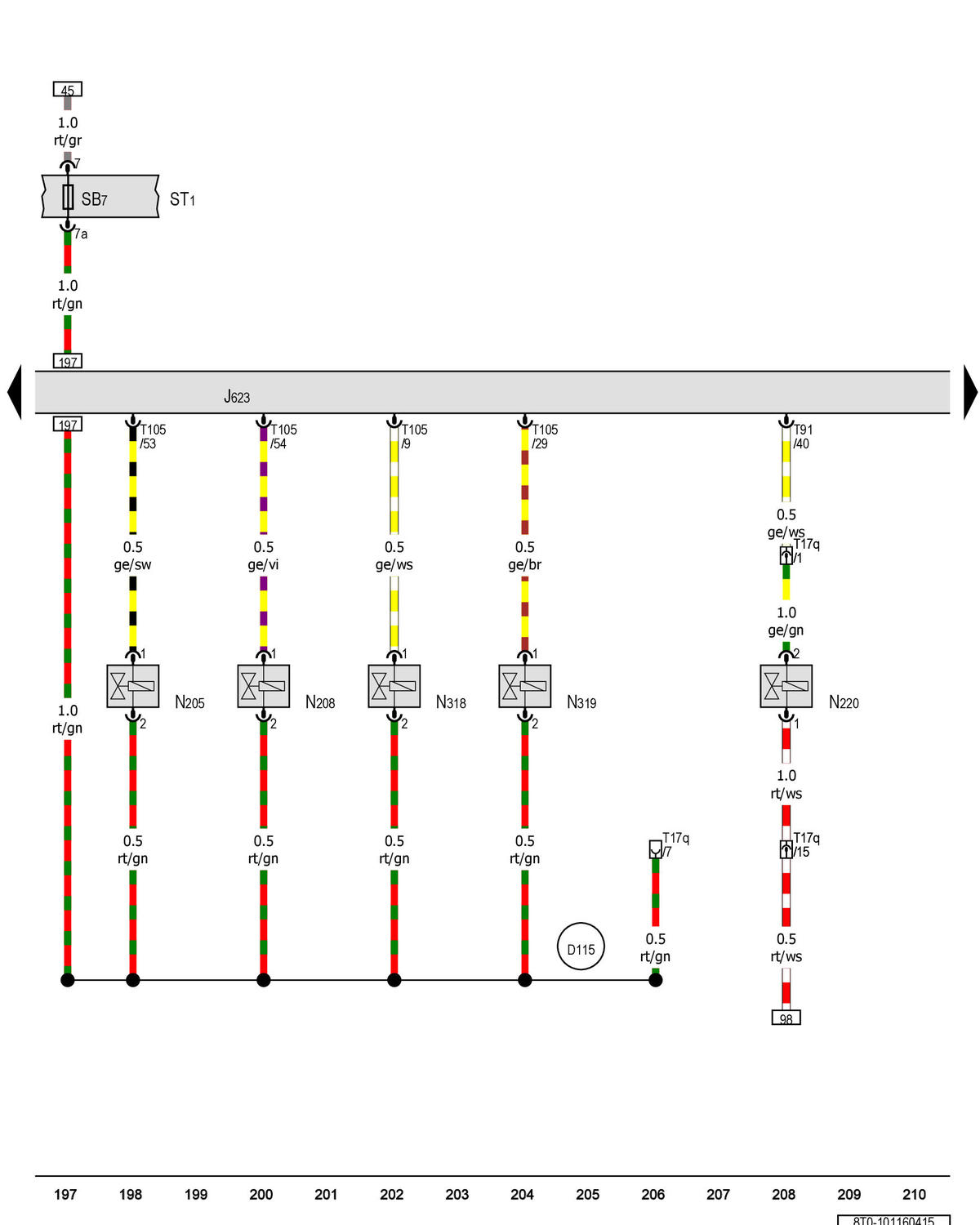

Engine Control Module, Camshaft Adjustment Valve 1, Exhaust Door Valve, Exhaust Camshaft Adjustment Valve 1: Notes

GWW8T0-101160415

Courtesy of AUDI OF AMERICA, LLC
