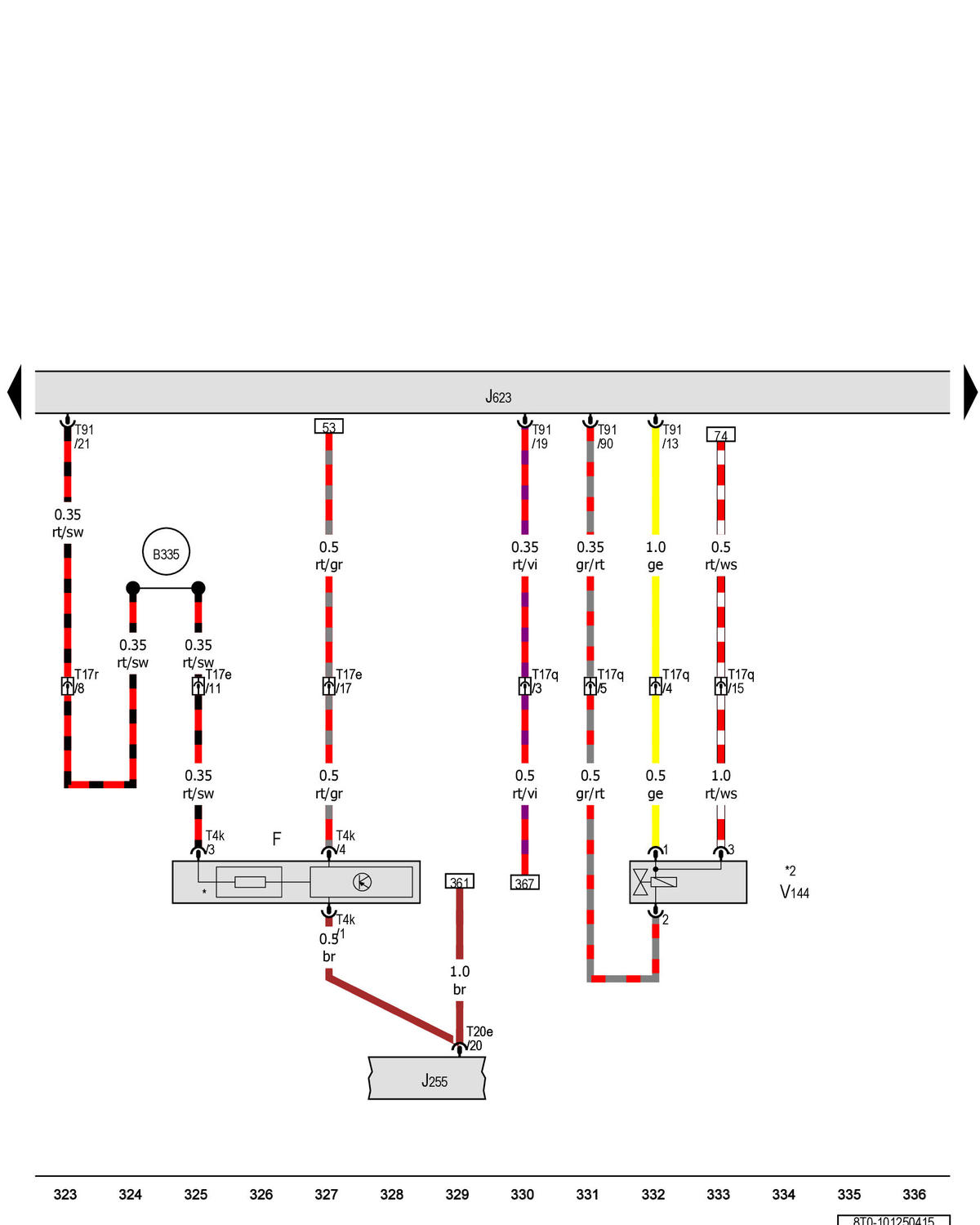

Brake Lamp Switch, Engine Control Module, Leak Detection Pump: Notes

GWW8T0-101250415

Courtesy of AUDI OF AMERICA, LLC
