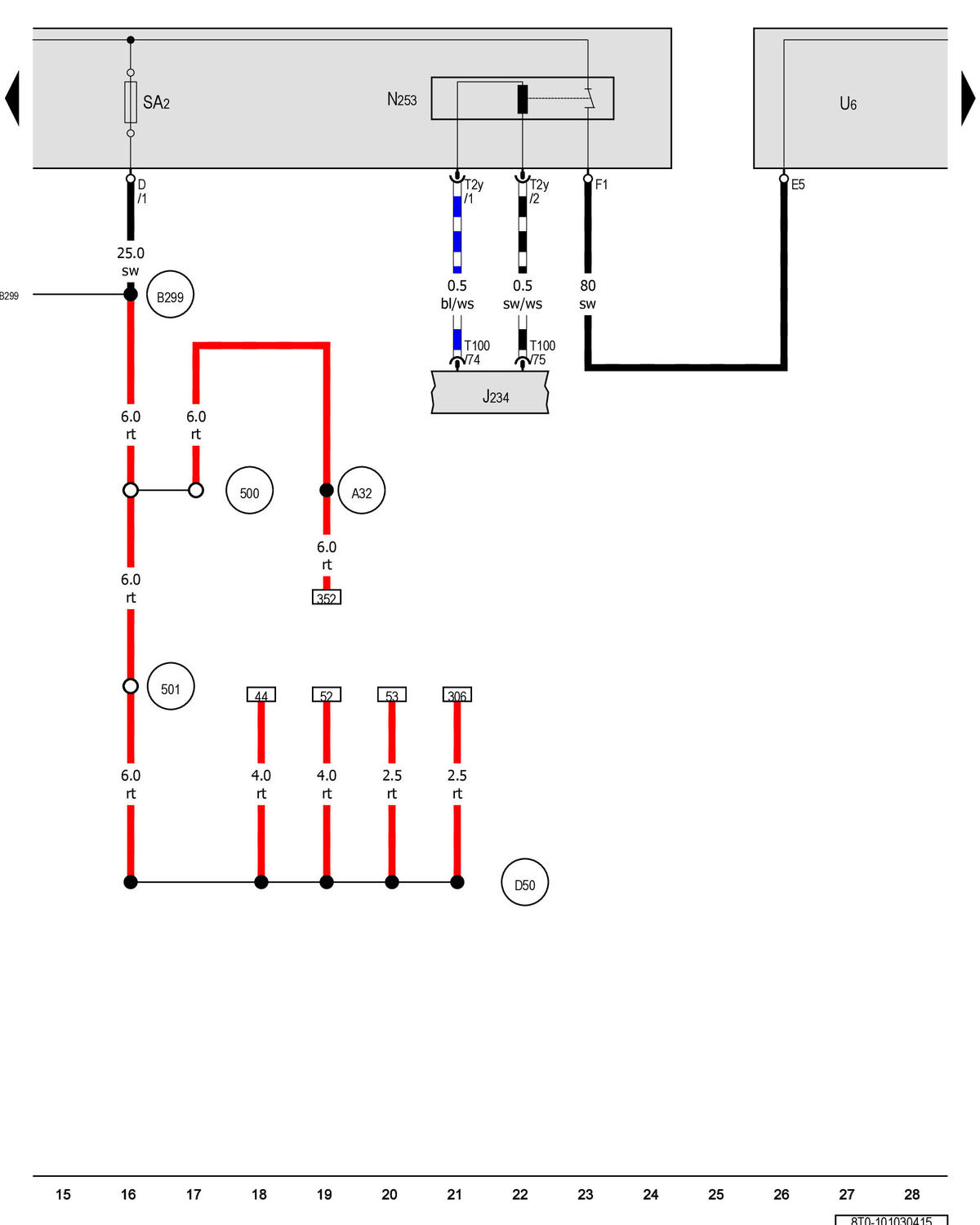

Battery Interrupt Igniter, Battery Jump Start Terminal: Notes

GWW8T0-101030415

Courtesy of AUDI OF AMERICA, LLC
