Engine, Securing To Engine And Transmission Holder: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2017 Audi A5 Quattro, 2016 Audi A5 Quattro, 2015 Audi A5 Quattro, 2014 Audi A5 Quattro, and 2013 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools And Workshop Equipment Required
- Holding Fixture :VW540
- Engine and Transmission Holder :VAS6095A
- Engine Sling :2024A
- Shop Crane :VAS6100

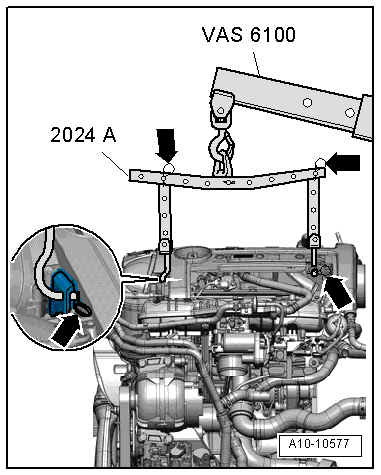

- Engine engaged with the :2024A on the :VAS6100
- To Be Aligned To The Center Of Gravity Of The Assembly, The Rails With Holes Of The Lifting Hooks Must Be Inserted As Shown.
CAUTION:
There Is a Risk of Injury from the Lifted Engine Falling
Parts Of The Body Could Be Crushed.
- Secure The Mounting Hooks And Pins On The Lifting Tackle With A Securing Pin.
-- Remove The Drive Plate. Refer To DRIVE PLATE, REMOVING AND INSTALLING .
-- For The Assembly Work Secure The : VW540 on the engine.
-- Secure the engine with the :VW540 on the :VAS6095A .
