Exhaust System, Installing

Procedure

• Align exhaust system when cold.
• Tightening specification, refer to MUFFLER OVERVIEW .

-- Loosen the clamping sleeve threaded connections.

Fig 1: Identifying Muffler Left Retaining Loop Dimension

Courtesy of AUDI OF AMERICA, LLC

-- Press the rear muffler as far forward as possible -arrow- until the tension at the left retaining loop -a- = 11 to 13 mm.

-- Install clamping sleeves so that the bolt ends do not project over lower edge of clamping sleeves.

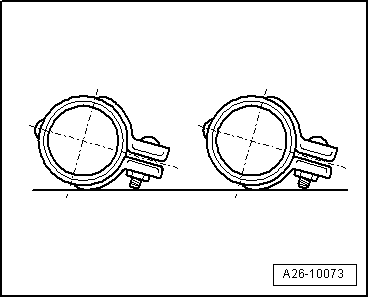

Fig 2: Identifying Installed Position Of Front Clamping Sleeves

Courtesy of AUDI OF AMERICA, LLC

• The threaded connections are toward the right.
