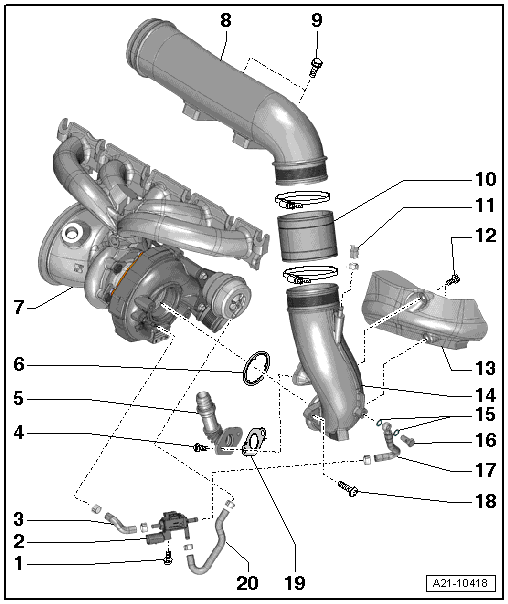

Part 2
- Bolt
- 4 Nm
- Wastegate Bypass Regulator Valve -N75-
- Hose
- Bolt
- 9 Nm
- Connecting Piece
- For crankcase ventilation
- Gasket
- Replace
- Clip onto the air guide pipe
- Turbocharger
- One unit with the exhaust manifold
- Removing and installing, refer to TURBOCHARGER
- Air Guide Pipe
- Bolt
- 9 Nm
- Air Guide Hose
- Hose
- Bolt
- 9 Nm
- Heat Shield
- Air Guide Pipe
- Seals
- Replace
- Banjo Bolt
- 15.5 Nm
- Hose
- Bolt
- 9 Nm
- Gasket
- Replace
- Clip onto the connection
- Hose
