Fastener Tightening Specifications
| Component | Fastener Size | Nm |
|---|---|---|
| Exterior Rearview Mirror Housing to Base | 9.5 | |
| Exterior Rearview Mirror Turn Signal Bulb | 0.4 | |
| Exterior Rearview Mirror Mount | 2 | |
| Fog Lamp Housing | 5 | |
| Headlamp Housing Bracket Screw | 4.5 | |
| Headlamp Beam Adjustment Motor | 2 | |
| Headlamp Housing Cover | 2 | |
| Headlamp Range Control Module | 3 | |
| License Plate Lamp | 0.8 | |
| Rear Fog Lamp | 1.2 | |
| Steering Column Electronic Systems Control Module | 0.4 | |
| Tail Lamp Bulb Holder | 1.7 | |
| Tail Lamp Housing | 3.5 |

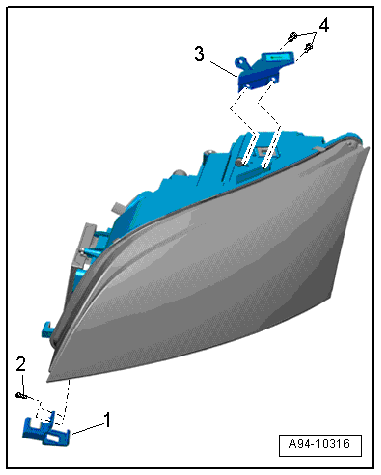

Tightening Specification, Headlamp Housing Repair Set
-- Tighten the bolts -2- and -4- to 6 Nm.
