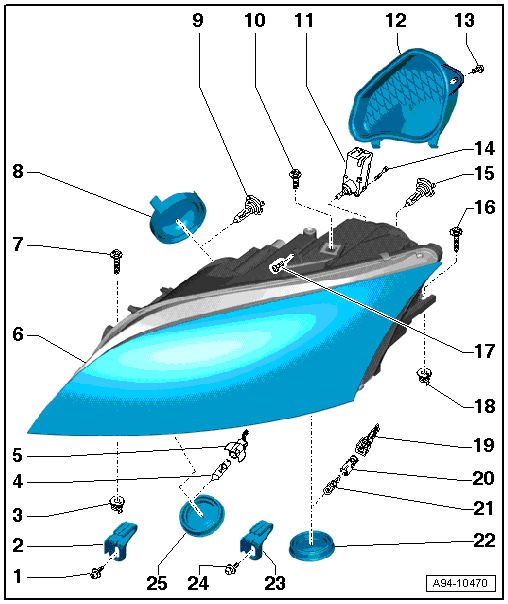

Halogen Headlamps Overview
Observe notes on contact corrosion. Refer to CONTACT CORROSION .
NOTE:
Headlamps must be adjusted after performing measures that could influence headlamp adjustment. Refer to HEADLAMPS CHECKING AND ADJUSTING CONDITIONS .
- Screw
- 4.5 Nm
- Headlamp Housing Bracket
- Adjusting Nut
- For adjustment of headlamp to bumper contour.
- Front Turn Signal Lamp
- Left front turn signal lamp -M5-
- Right front turn signal lamp -M7-
- 12V, 21 W
- H21W
- Bulb, replacing, refer to FRONT TURN SIGNAL LAMP BULBS -M5- / -M7- .
- Lamp Socket
- For the front turn signal lamp.
- Headlamp Housing
- Removing and installing, refer to HEADLAMPS .
- Screw
- 4.5 Nm
- Housing Cover
- For the high beam headlamps.
- High Beam Headlamp Bulb
- Left high beam headlamp -M30-
- Right high beam headlamp -M32-
- H7 - 12V, 55 W
- Bulb, replacing, refer to HIGH BEAM HEADLAMP BULBS -M30- / -M32- .
- Screw
- 4.5 Nm
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing, refer to HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49- .
- Housing Cover
- For the low beam headlamps.
- Different versions.
- Screw
- 2 Nm
- Not present on older versions.
- Screw
- 2 Nm
- Low Beam Headlamp Bulb
- Left low beam headlamp -M29-
- Right low beam headlamp -M31-
- H7 - 12V, 55 W
- Bulb, replacing, refer to LOW BEAM HEADLAMP BULB -M29- / -M31- .
- Screw
- 4.5 Nm
- Impact Screw
- For aligning headlamp housing to contour of chassis.
- Must rest against lock carrier.
- Adjusting Nut
- For adjustment of headlamp to bumper contour.
- Bulb Socket Retainer
- For parking lamp
- Lamp Socket
- For parking lamp
- Parking Lamp Bulb
- Left Parking Lamp -M1-
- Right Parking Lamp -M3-
- Yellow, 12V, 5 W
- Bulb, replacing, refer to SIDE MARKER LAMP BULB -M1- / -M3- .
- Housing Cover
- For parking lamp
- Headlamp Housing Bracket
- Screw
- 4.5 Nm
- Housing Cover
- For turn signal light
-- Tighten the bolts -2- and -4- to 6 Nm.
