Fog Lamps Overview

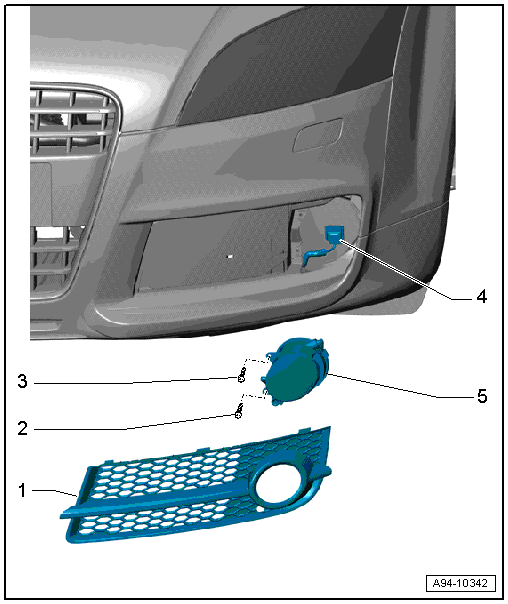

Fig 1: Fog Lamps Overview
GWWA94-10342Courtesy of AUDI OF AMERICA, LLC
  1. Air Inlet Grille
  2. Screw
    • 5 Nm
  3. Screw
    • 5 Nm
  4. Electrical Connector
  5. Fog Lamps
    • Removing and installing, refer to FOG LAMP .
