Front Belt Latch Anchorage Point
Removing
-- Adjust the front seat all the way back and up to the stop.
-- Remove the front seat:
- Manual Front Seats, Removing and Installing, refer to FRONT SEAT
- Power Front Seats, Removing and Installing, refer to FRONT SEAT
- Bucket Seat, Removing and Installing, refer to SEAT
Vehicles with Passenger Airbag Deactivation Passenger Occupant Detection System
Replace the passenger occupant detection system seat belt latch each time the passenger belt tensioner deploys.

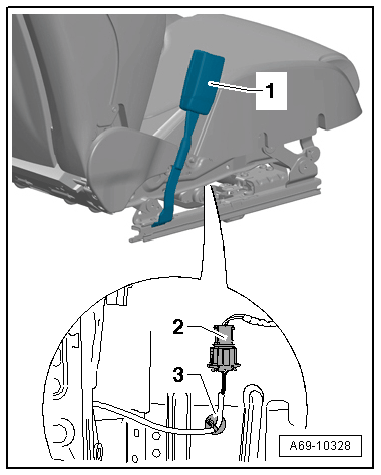

-- Disconnect the connector -2-.
1 - passenger occupant detection system passenger airbag deactivation seat belt latch (for certain countries)
-- Unclip cable tie clip -3-.
Procedure for all Vehicles

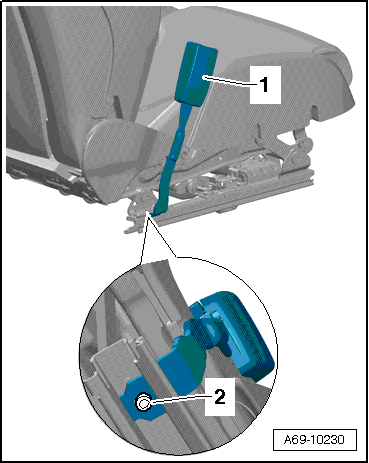

-- Remove bolt -2- and remove seat belt latch -1-.
Installation
Install in reverse order of removal. Note the following:
Vehicles with Passenger Airbag Deactivation Passenger Occupant Detection System (for certain countries)
-- If the seat belt latch of the passenger occupant detection system for front passenger airbag deactivation is replaced, fill out the system registration sheet with the serial number and bar code label from the new seat belt latch and send it to the importer.
Procedure for all Vehicles
-- Replace the seat belt latch bolt.
Make sure the connectors are installed all the way in and are secure.
-- Switch on ignition.
Connect the battery with the ignition switched on. Pyrotechnic components could deploy after connecting the battery if they were not repaired correctly. Individuals must not be inside the vehicle when connecting the battery.
-- Connect battery ground cable with ignition switched on. Refer to [For transmission(s) 02E] [For engine(s) CBRA, BPY, CETA, CCTA, CEPB, CDMA] Removal and Installation .
-- If Airbag Malfunction Indicator Lamp (MIL) -K75- indicates a fault after installation, DTC memory must be checked, deleted and checked again => .
