Front Seat Latch Child Seat Anchorage Assembly Overview

NOTE:

The surrounding area was not shown in the illustration for clarity purposes.

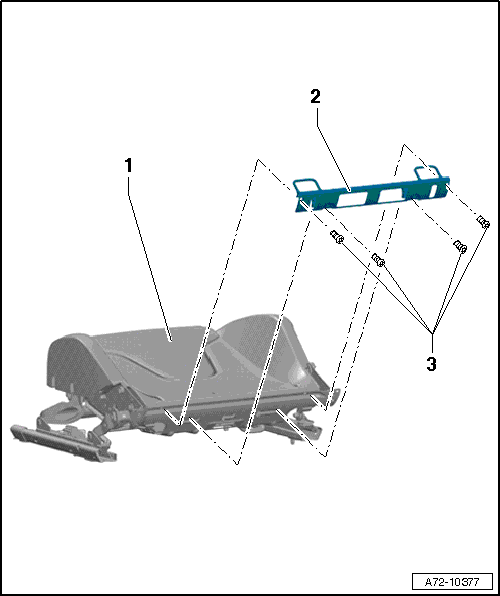

Fig 1: Front Seat Latch Child Seat Anchorage Assembly Overview
GWWA72-10377Courtesy of AUDI OF AMERICA, LLC
  1. Seat pan
  2. Bracket
  3. Bolt
    • 12 Nm
    • Quantity: 4
    • Replace if bracket is damaged
