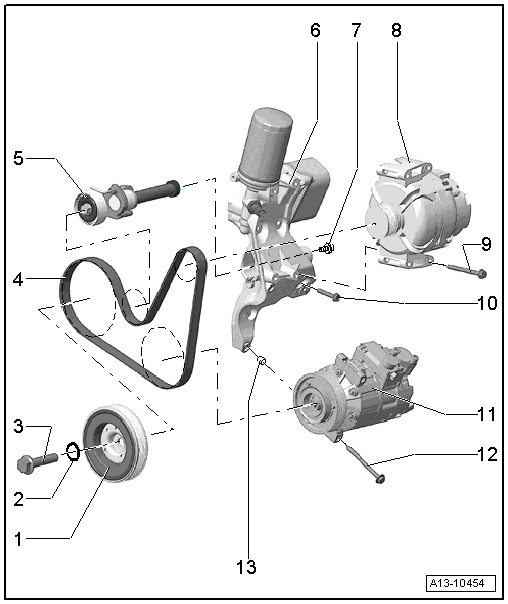

Ribbed Belt Drive Overview
- Vibration Damper
- With ribbed belt pulley
- Removing and installing, refer to VIBRATION DAMPER
- O-ring
- Not a replacement part; supplied with the bolt
- Bolt
- 150 Nm plus an additional 90° turn
- Replace
- Coat the O-ring with oil.
- Use counter hold tool T10355 to loosen and tighten
- Ribbed Belt
- Check for wear
- Do not kinkCAUTION:
Risk of destroying due to reversed running direction on a used ribbed belt.
- Before removing the ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.
- Removing and installing, refer to RIBBED BELT
- When installing, make sure it is seated correctly on the pulleys
- Ribbed Belt Tensioning Damper
- Move the damper using an open-end wrench to release the tension on the ribbed belt
- Secure using the locking pin T10060 A

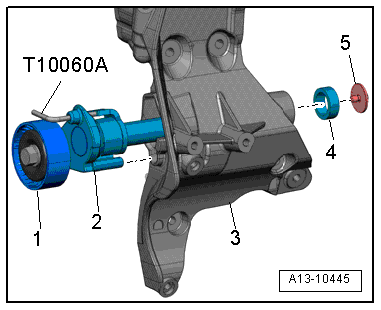

- Tensioning device for the ribbed belt, refer to Fig 2
- Removing and installing, refer to RIBBED BELT TENSIONER
- Accessory Assembly Bracket
- With oil filter and engine oil cooler
- Accessory assembly bracket, removing and installing, refer to ACCESSORY ASSEMBLY BRACKET
- For removing and installing engine oil cooler, refer to ENGINE OIL COOLER
- Bolt
- 10 Nm
- Generator
- Removing and installing, refer to [For transmission(s) 02E] Removal and Installation
- Bolt
- For the correct tightening specification, refer to [For transmission(s) 02E] Specifications
- Bolt
- Tightening sequence, refer to Fig 3
- Air Conditioning (A/C) Compressor
- Do not remove or disconnect refrigerant lines
- Removing and installing. Refer to Removal and Installation
- Bolt
- 25 Nm
- Alignment Bushing
- For air conditioning compressor
- Ribbed belt tensioning damper
- Support
- Bracket for assemblies
- Centering sleeve
- Bolt
-- Mount the accessory assembly bracket and then mount the bolts -4-.
-- Tighten bolts in 3 stages in -1 to 5- sequence as follows:
| -- Tighten bolts by hand.-- Tighten the bolts to 20 Nm.-- Tighten the bolts an additional 90°. |
