Coolant Fan -V7- AND Coolant Fan 2 -V177-

Removing

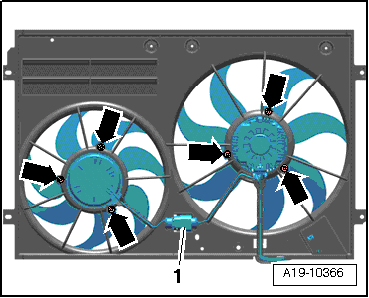

Fig 1: Coolant Fan Connector And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove fan shroud. Refer to FAN SHROUD .

-- Disconnect the connector -1-.

-- Free up electrical wires.

-- Remove nuts -arrows- and remove coolant fan.

Installing

• For the correct tightening specifications, refer to RADIATOR, FAN SHROUD AND COOLANT FAN OVERVIEW .

Installation is carried out in the reverse order while noting the following:

-- Install fan shroud. Refer to FAN SHROUD .
