Seat Pan Cover And Upholstery

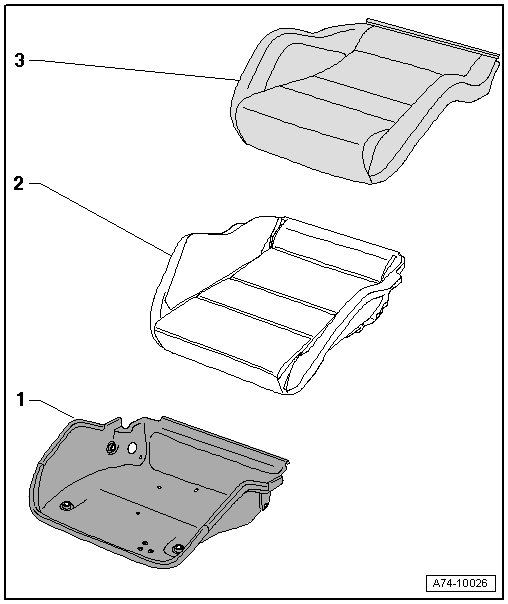

Fig 1: Identifying Seat Pan Cover And Upholstery

Courtesy of AUDI OF AMERICA, LLC

Seat pan
- Replace seat pan if threads are damaged or stripped.
- Removing and Installing, refer to FRONT BACKREST AND SEAT PAN
Seat pan cushion
Seat pan cover
Removing

-- Remove the seat. Refer to SEAT .

-- Remove seat pan. Refer to FRONT BACKREST AND SEAT PAN .

-- Remove Velcro fastener on left and right from rear seat cover.

-- Pry grip channel at edge of seat cover -3- all around out of guide at seat pan -1-.

-- Carefully loosen seams of seat pan cover from Velcro fastener at seat pan cushion -2-.

-- Remove seat cover.

Installation

Install in reverse order of removal.
