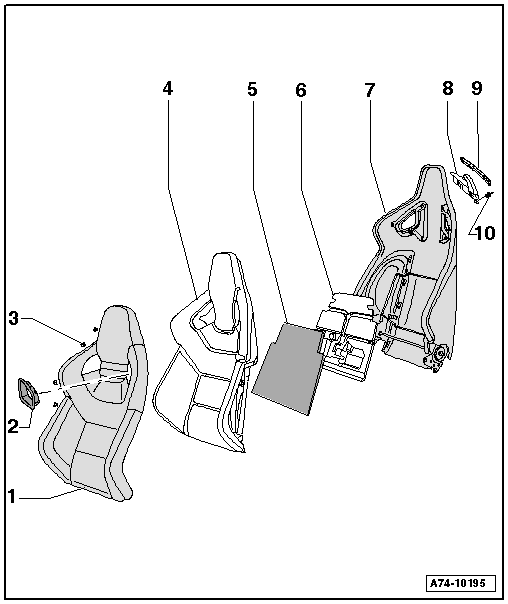

Backrest Cover And Upholstery
- Backrest cover
Removing
-- Remove the seat. Refer to SEAT .
-- Remove the backrest. Refer to FRONT BACKREST AND SEAT PAN .
-- Remove both outer parts of the belt guide -2- Fig 2.
Courtesy of AUDI OF AMERICA, LLC
-- Pry out cover on belt guide, drill out pop rivet with a 5.0 mm drill bit and remove belt guide Fig 3.
-- Pry grip channel at edge of backrest cover -1- all around out of guide at backrest -7- Fig 5.
-- in bending sections, grip channel is also secured using clips -3-, carefully remove clips.
-- Carefully loosen seams of backrest cover from Velcro fastener at backrest cushion -4-.
-- Disengage lower retaining strip at foam block -6-.
-- Remove backrest cover.
Installation
Install in reverse order of removal.
- Seat belt guide outer part
- Removing and Installing, refer to Fig 2
- Clips (quantity: 8)
- For grip channel of backrest cover
- Install in bend in backrest
- Backrest padding
Removing
-- Remove backrest cover -1-.
-- Remove backrest cushion from backrest.
Installation
Install in reverse order of removal.
- Felt mat
- Glued
- Foam block
Removing
-- Remove backrest cover -1-.
-- Remove backrest cushion -4-.
-- Carefully loosen foam block bonding from backrest.
-- Tip foam block forward at upper edge.
-- Remove foam block.
Installation
Install in reverse order of removal.
-- If necessary, replace double adhesive tape.
- Backrest
- Removing and Installing, refer to FRONT BACKREST AND SEAT PAN
- Belt guide
- Removing and Installing, refer to Fig 3
- Trim
- For belt guide
- Removing and Installing, refer to Fig 3
- Pop rivet

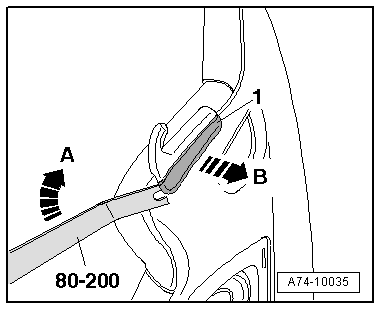

-- Pry out trim -1- with Pry Lever 80 - 200 at outer corner -arrow A-.
-- Remove trim downward -arrow B-.

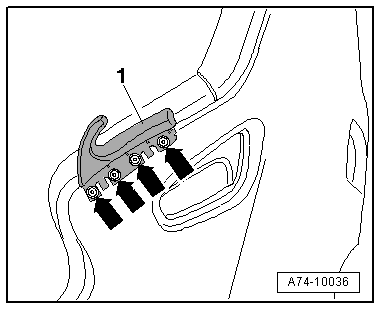

-- Drill out pop rivets -arrows- with a 5.0 mm drill bit.
-- Remove belt guide -1- from backrest frame.
-- Starting at bottom, pry grip channel for backrest cover out of guide at backrest, using for example, an awl -arrow- ; lightly press together backrest upholstery in order to release backrest cover.
