Sill And Tunnel Side Trim Assembly Overview

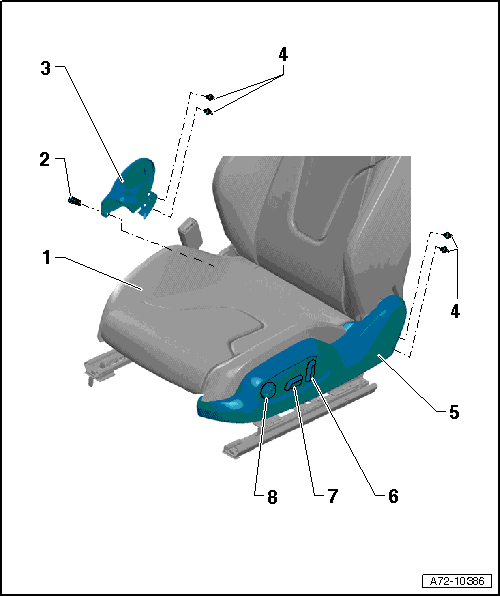

Fig 1: Sill And Tunnel Side Trim Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Front seat
Bolt
- 2.5 Nm
Tunnel side trim
- Can only be replaced with seat removed
- Removing and Installing, refer to TUNNEL SIDE TRIM
Expanding rivet
- Quantity: 4
Sill-side trim
- Can be replaced with seat installed
- Removing and Installing, refer to SILL SIDE TRIM
Actuator
- For Driver Backrest Adjustment Switch -E96- or Passenger Backrest Adjustment Switch -E98-
- Assembly Overview, refer to SEAT AND BACKREST ADJUSTMENT ACTUATOR ASSEMBLY OVERVIEW
- The switch -E363-, -E222-, -E364- or switch or button -E64-, -E334- and -E365-; refer to item 7 as well as switch -E96- or -E98- are allocated to the same housing.
Actuator
- for driver seat forward/back adjustment switch -E363- or front passenger seat forward/back adjustment switch -E64-
- for driver seat angle adjustment switch -E222- or front passenger seat angle adjustment button -E334-
- for driver seat height adjustment switch -E364- or front passenger seat height adjustment switch -E365-
- Assembly Overview, refer to SEAT AND BACKREST ADJUSTMENT ACTUATOR ASSEMBLY OVERVIEW
- The switch -E363-, -E222-, -E364- or the switch or button -E64-, -E334- and -E365- as well as the switch -E96- or -E98- are allocated to the same housing; refer to item 6.
Driver seat lumbar support adjustment switch -E176- or front passenger seat lumbar support adjustment switch -E177-
- Assembly Overview, refer to SEAT AND BACKREST ADJUSTMENT ACTUATOR ASSEMBLY OVERVIEW
