Seat Height Adjustment Motors V245 And V246 Assembly Overview

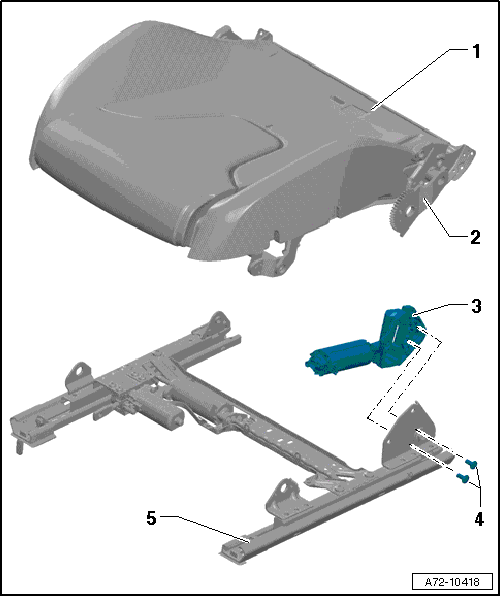

Fig 1: Seat Height Adjustment Motors V245 And V246 Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Upper seat pan frame
   • With cover and upholstery
   • Removing and Installing, refer to SEAT PAN, DISASSEMBLING AND ASSEMBLING
2. Toothed segment
   • Plastic toothed segment
   • Removing and Installing, refer to SEAT HEIGHT ADJUSTER TOOTHED SEGMENT
   • Clipped to fitting
3. Driver Seat Height Adjustment Motor -V245- or Front Passenger's Seat Height Adjustment Motor -V246-
   • Removing and Installing, refer to SEAT HEIGHT ADJUSTMENT MOTOR V245 AND V246
4. Screw, self-locking
   • 31 Nm
   • Quantity: 2
   • Replacing
   • Threaded holes for screws must always be cleaned (for example, with thread cutter)
5. Lower seat pan frame
   • Removing and Installing, refer to SEAT PAN, DISASSEMBLING AND ASSEMBLING
