Lumbar Support Curvature And Height Adjustment Motors Assembly Overview

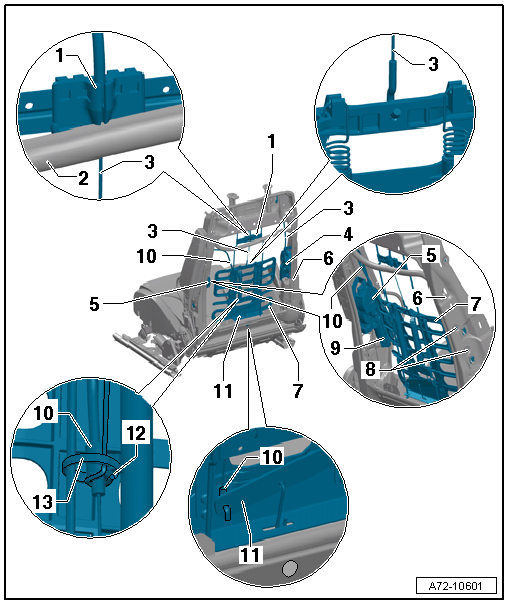

Fig 1: Lumbar Support Curvature And Height Adjustment Motors Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Clip
   • For release cable guide, refer to item  3
2. Release cable
   • With entry assist
   • Coupe only
3. Release cable
   • For four-way lumbar support height adjustment
   • Can only be replaced together with Driver Seat Lumbar Support Height Adjustment Motor -V129- or Front passenger Seat Lumbar Support Height Adjustment Motor -V130-
4. Driver Seat Lumbar Support Height Adjustment Motor -V129- or Front passenger Seat Lumbar Support Height Adjustment Motor -V130-
   • Removing and Installing, refer to LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTORS V129 AND V130
5. Driver Seat Lumbar Support Curvature Adjustment Motor -V125- or Front Passenger's Seat Lumbar Support Curvature Adjustment Motor -V126-
   • Removing and Installing, refer to LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTORS V125 AND V126
6. Backrest frame
7. Four-way lumbar support
8. Rivet
   • Quantity: 2 per motor
   • Rivet using special pop rivet pliers V.A.G 1753A
9. Connector
10. Release cable
    • For four-way lumbar support curvature adjustment
    • Can only be replaced together with Driver Seat Lumbar Support Curvature Adjustment Motor -V125- or Front Passenger's Seat Lumbar Support Curvature Adjustment Motor -V126-
11. Retaining plate
12. Retainer
13. Cable tie
