Front Seat Backrest Adjustment Motors V45/V46 Assembly Overview

NOTE:

• For clarity reasons, the backrest is shown without lumbar support, padding and cover.
• A Coupe backrest frame is shown in the illustration. The Roadster backrest frame is the same, only the entry assistance release cable shown in the illustration is not installed.

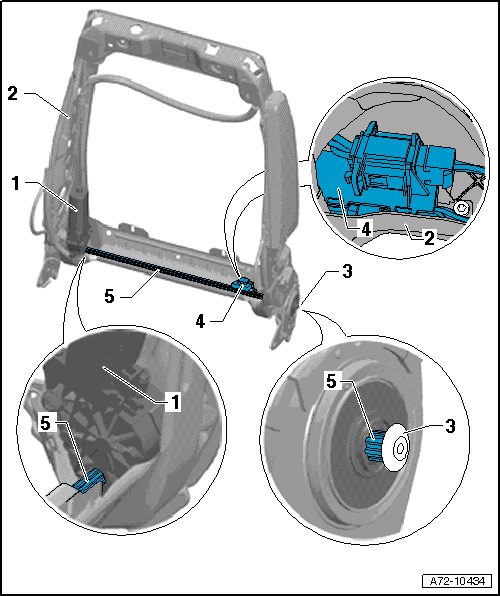

Fig 1: Front Seat Backrest Adjustment Motors V45/V46 Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Backrest adjustment motor
   • Driver side -V45-
   • Passenger side -V46-
   • May not be replaced. Refer to DRIVER'S BACKREST ADJUSTMENT MOTOR V45 OR V46
   • If there is damage to the motor, replace backrest frame with backrest adjustment motor, shaft and housing. Refer to DRIVER'S BACKREST ADJUSTMENT MOTOR V45 OR V46
2. Front backrest
   • Only backrests shown
3. Rivet
   • Do not remove
4. Housing with stop switch coupling
   • Driver Backrest Stop Switch -E69- or front passenger backrest stop switch -E70- are installed in the housing
   • do not remove the housing from the shaft, refer to item  5 or the component will be damaged
   • The driver backrest stop switch -E69- or front passenger backrest stop switch -E70- may not be replaced. Refer to FRONT SEAT BACKREST STOP SWITCHES E69 AND E70
5. Shaft
   • Do not remove
