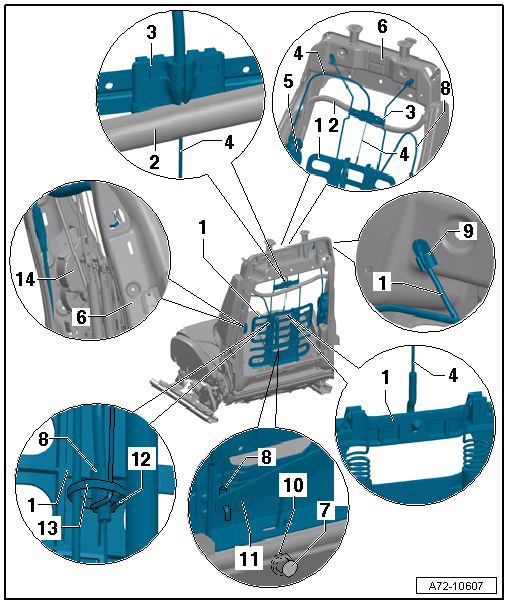

Four-Way Lumbar Support Assembly Overview
NOTE:
The cover with upholstery in the backrest is not shown for clarity purposes.
- Four-way lumbar support
- Removing and Installing, refer to FOUR-WAY LUMBAR SUPPORT
- Release cable
- With entry assist
- Coupe only
- Clip
- For release cable guide; refer to item 4
- Release cable
- For lumbar support height adjustment
- can only be replaced with Driver Seat Lumbar Support Height Adjustment Motor -V129- or Front passenger Seat Lumbar Support Height Adjustment Motor -V130-
- Driver Seat Lumbar Support Height Adjustment Motor -V129- or Front passenger Seat Lumbar Support Height Adjustment Motor -V130-
- Removing and Installing, refer to LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTORS V129 AND V130
- Backrest frame
- Rivet
- Rivet using special pop rivet pliers V.A.G 1753A
- before riveting, a plastic washer must be placed between lumbar support and backrest frame; refer to item 10
- Release cable
- For lumbar support curvature adjustment
- Can only be replaced with Driver Seat Lumbar Support Curvature Adjustment Motor -V125- or Front Passenger's Seat Lumbar Support Curvature Adjustment Motor -V126-
- Clip
- Plastic washer
- Between four-way lumbar support and backrest frame
- Retaining plate
- Retainer
- Cable tie
- Driver Seat Lumbar Support Curvature Adjustment Motor -V125- or Front Passenger's Seat Lumbar Support Curvature Adjustment Motor -V126-
- Removing and Installing, refer to LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTORS V125 AND V126
