Connectors, Disconnecting

Procedure

Fig 1: Releasing Cover Cap In Direction Of Arrow

Courtesy of AUDI OF AMERICA, LLC

-- Loosen seat mounting bolts. Refer to SEAT .

-- Tip front seat back.

-- Release cover cap -1- in direction of -arrow-.

-- Remove wiring bracket -3-.

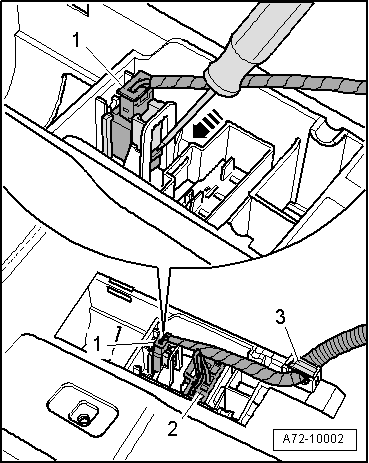

Fig 2: Wiring Bracket From Connector Station

Courtesy of AUDI OF AMERICA, LLC

-- Release clip in direction of -arrow- with a small screwdriver and disconnect electrical connector -1- with side airbag terminal resistance.

NOTE:

The side airbag terminal resistance is a separate connector housing without a cable. The side airbag cable, as shown in the illustration above, is not in the TT.

-- Press in tab on connector for heated seat -2- on tunnel side and disconnect connector for heated seat.

For vehicles with seat belt fasten sensor:

-- Press in tab on connector for seat belt fasten sensor on tunnel side and disconnect connector for seat belt fasten sensor.
