Release Cable, Engaging In Rear Lid Lock: Engaging

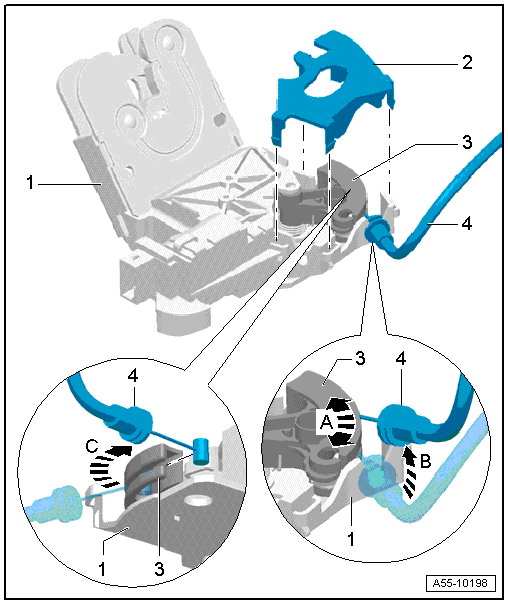

Fig 1: Engaging Release Cable

Courtesy of AUDI OF AMERICA, LLC

1. Rear lid latch
2. Cover
   • After installing, attach release cable to lid lock.
3. Lid lock coupling plate
4. Release cable
   • Engage in coupling plate as shown and engage release cable on lid lock.
