Engaging In Handle

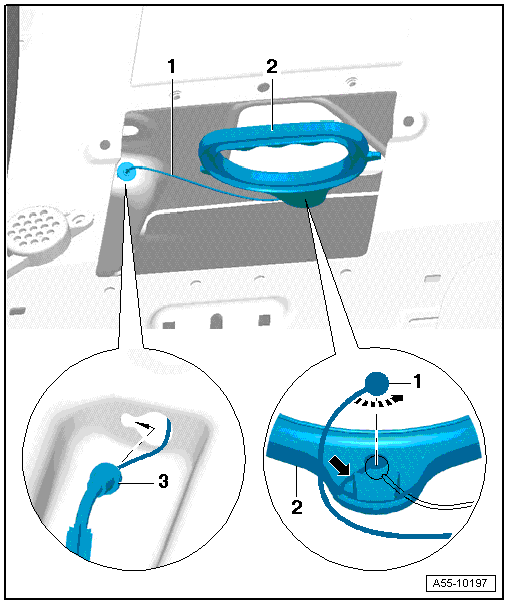

Fig 1: Identifying Engaging In Handle
GWWA55-10197Courtesy of AUDI OF AMERICA, LLC
  1. Release cable
    • Engage release cable ball -1- in handle -2-.
      CAUTION:

      The cable must be routed behind retaining tab as shown to ensure proper function.

  2. Emergency release handle
  3. Grommet
    • Slide into end plate and engage at sides
