Rear Lid, Gap Dimensions

Special tools and workshop equipment required

• Adjusting gauge 3371

Fig 1: Gap Dimensions

Courtesy of AUDI OF AMERICA, LLC

The gap dimensions can be checked with the Adjustment Gauge 3371.

• In -A- area = 4.5 mm +/- 0.5 mm
• In -B- area = 3.5 mm +/- 0.5 mm
• In -C- area = 4.0 mm +/- 0.5 mm
• In -D- area = 2.0 mm +/- 0.5 mm
• In -E- area = 2.0 mm +/- 0.5 mm

Gap Dimensions

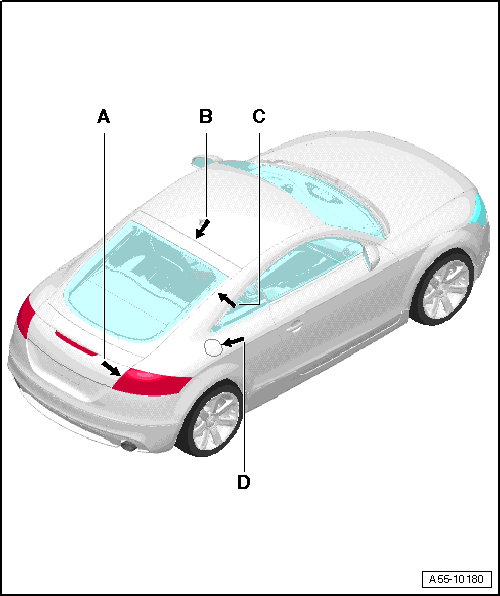

Fig 2: Identifying Gap Dimensions

Courtesy of AUDI OF AMERICA, LLC

• Dimension -A- = 4.0 mm +/- 0.5 mm
• Dimension -B- = 4.5 mm +/- 0.5 mm
• Dimension -C- = 3.5 mm +/- 0.5 mm
• Dimension -D- = 2 mm all around
