Hood, Adjusting

Special tools and workshop equipment required

• Adjusting Gauge 3371

Gap Dimensions for Hood

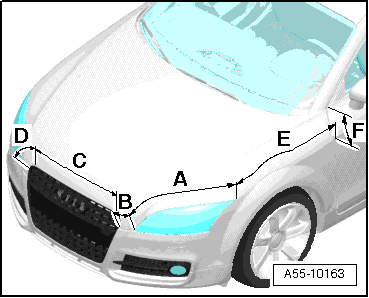

Fig 1: Identifying Gap Dimensions For Hood

Courtesy of AUDI OF AMERICA, LLC

• In -A- area = 3.5 mm +/- 0.5 mm.
• In -B- area = 4.5 mm +/- 0.5 mm
• In -C- area = 4.5 mm +/- 0.5 mm
• In -D- area = 4.0 mm to 2.5 mm (in transition area)
• In -E- area = 3.5 mm +/- 0.5 mm
• In -F- area = 3.5 mm +/- 0.5 mm

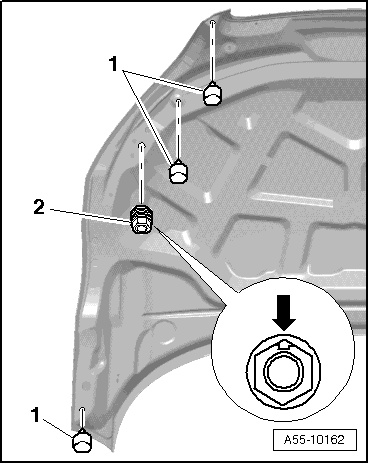

Fig 2: Buffer Stop for Height Adjustment

Courtesy of AUDI OF AMERICA, LLC

• Adjusting buffer -1- must lightly contact the lock carrier when the lid is closed.
• Rubber buffers -2- act as a strike guard and should not make contact with the lid closed.

Hood Projection

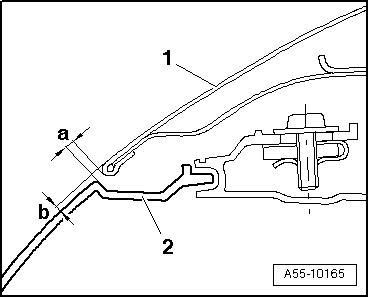

Fig 3: Identifying Correct Adjustment

Courtesy of AUDI OF AMERICA, LLC

-- For correct adjustment, lid -1- must project in the headlamp area -2-.

• Dimension -a- = 3.5 mm +/- 0.5 mm
• Projection dimension -b- = 3 mm +/- 0.5 mm
