Hood - TT
>>
Hood Hinge, Adjusting
Hood Hinge, Adjusting

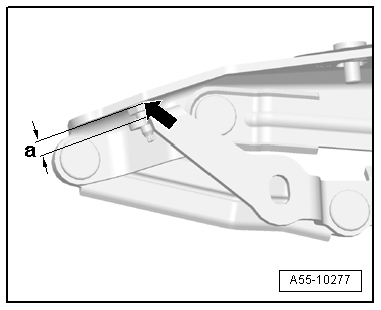

Fig 1: Identifying Hood Hinge, Adjusting
Courtesy of AUDI OF AMERICA, LLC
When changing the hinge, ensure that -a- = 12.5 mm and adjust if necessary.
Courtesy of AUDI OF AMERICA, LLC
