Hood Locks Assembly Overview

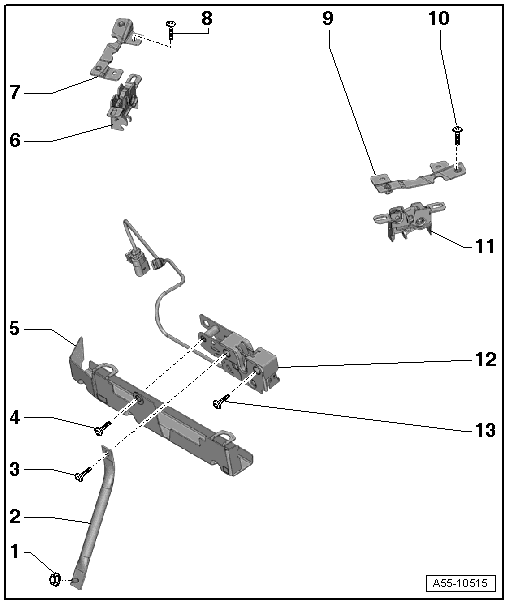

Fig 1: Identifying Hood Lock Assembly

Courtesy of AUDI OF AMERICA, LLC

Nut
- 9 Nm
Brace
Bolt
- 11 Nm
Bolt
- 11 Nm
Anti-theft protection
Right hood lock
- Removing and Installing, refer to LEFT AND RIGHT HOOD LOCK
Right mount for hood lock
Bolt
- 3 Nm
Left mount for hood lock
Bolt
- 10 Nm
Left hood lock
- Removing and Installing, refer to LEFT AND RIGHT HOOD LOCK
Front hood lock
- with the hood contact switch -F266-
- Can be used to adjust the hood height HOOD, ADJUSTING
- Removing and Installing, refer to CENTER HOOD LOCK
Bolt
- 11 Nm
