Hood Control Cable, Control Cable Operating Lever Assembly Overview

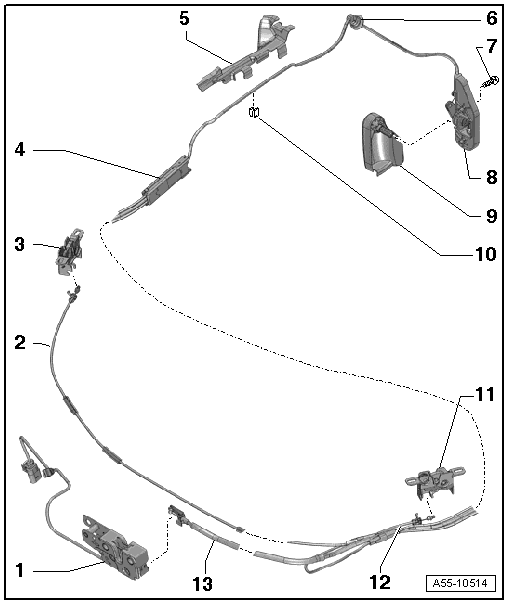

Fig 1: Identifying Hood Control Cable Assembly

Courtesy of AUDI OF AMERICA, LLC

1. Front hood Lock
2. Right cable
   • For the right lid lock
   • Removing and Installing, refer to RIGHT HOOD LOCK CONTROL CABLE
3. Right hood lock
4. Mount
   • For the cables to the left and right lid locks
   • Removing and Installing, refer to HOOD LOCK CONTROL CABLE MOUNT
5. Cover
   • For the cable
6. Grommet
   • For the seal to the passenger compartment
7. Bolt
   • 10 Nm
8. Operating lever mounting bracket
   • Removing and Installing, refer to RELEASE LEVER MOUNTING BRACKET
9. Hood release lever
10. Retaining clip
    • For mount with control cable
11. Left hood lock
    • Removing and Installing, refer to LEFT AND RIGHT HOOD LOCK
12. Left cable
    • For the left lid lock
    • Removing and Installing, refer to LEFT HOOD LOCK CONTROL CABLE
    • Adjusting, refer to HOOD LOCK CABLES, ADJUSTING
13. Cable
    • For front lid lock
    • Removing and Installing, refer to CENTER HOOD LOCK CONTROL CABLE
