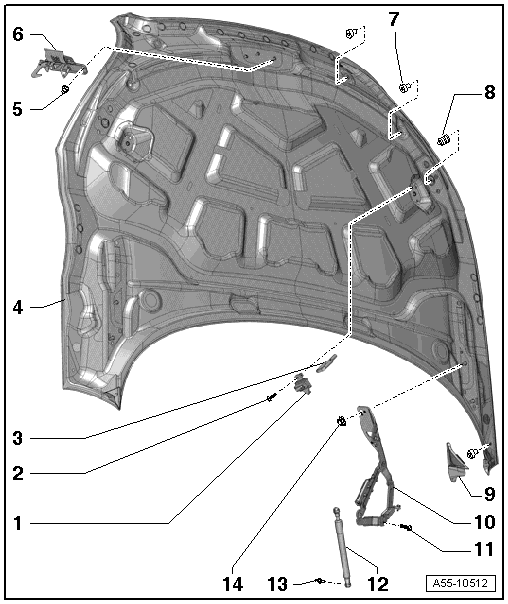

Hood Assembly Overview
- Anti-rotation protection
- For the striker pin
- Removing and Installing, refer to LEFT AND RIGHT STRIKER PINS
- Bolt
- 2 Nm
- Hood catch
- Removing and Installing, refer to LEFT AND RIGHT STRIKER PINS
- Adjusting, refer to HOOD, ADJUSTING
- Hood
- Removing and Installing, refer to HOOD
- Nuts
- 9 Nm
- Striker pin with catch
- Removing and Installing, refer to STRIKER PIN WITH CATCH
- Rubber stop
- Adjusting buffer
- Adjusting, refer to HOOD, ADJUSTING
- Impact guard
- Removing and Installing, refer to IMPACT GUARD
- Hood hinge
- Removing and Installing, refer to HOOD HINGE
- Bolt
- Pay attention to different lengths.
- 34 Nm
- Gas strut
- Removing and Installing, refer to GAS-FILLED STRUT
- Ball head pin
- 23 Nm
- Nut
- 34 Nm
