Rear Bumper Bracket
Removing
-- Remove bumper. Refer to REAR BUMPER .

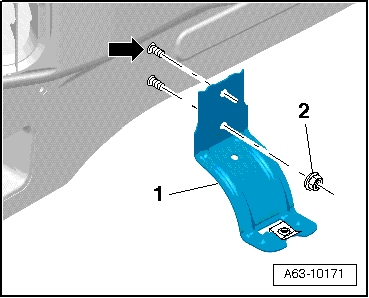

-- Remove the nut -2-.
-- Remove bumper bracket -1- from the body.
Installation
- For the correct tightening specifications, refer to IMPACT MEMBER, SHOCK ABSORBER AND GUIDE PIECE ASSEMBLY OVERVIEW .
Install in reverse order of removal. Note the following:
NOTE:
The threaded pin -arrow- is only used for fastening the bracket.
-- Install the bumper. Refer to REAR BUMPER .
