Inner Guide Piece

Removing

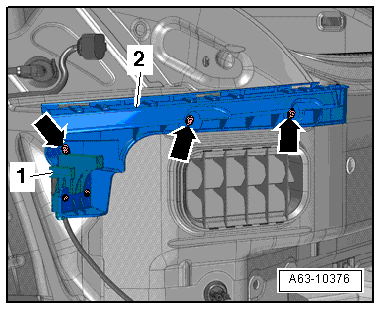

Fig 1: Inner Guide Piece

Courtesy of AUDI OF AMERICA, LLC

-- Remove bumper. Refer to REAR BUMPER .

-- Remove Radio frequency controlled clock receiver -J489- -1- if applicable. Refer to [For transmission(s) 02E] [For engine(s) CBRA, BPY, CETA, CCTA, CEPB, CDMA] Removal and Installation .

-- Remove the bolts -arrows-.

-- Remove inner guide piece -2-.

Installation

Fig 2: Tightening Torque And Sequence For Inner Guide Piece

Courtesy of AUDI OF AMERICA, LLC

• For the correct tightening specifications, refer to Figure.

Install in reverse order of removal. Note the following:

-- Tighten the screws in the sequence -1-3-.

-- Install the bumper. Refer to REAR BUMPER .
