Impact Member

Removing

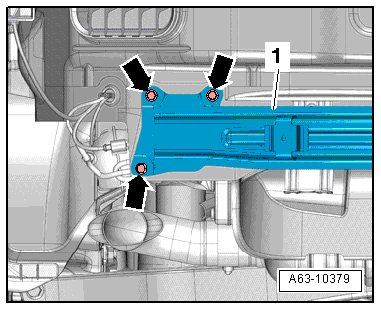

Fig 1: Identifying Impact Member

Courtesy of AUDI OF AMERICA, LLC

-- Remove bumper. Refer to REAR BUMPER .

-- Remove the bolts -arrows-.

NOTE:

There is a different number of screws on the left and right.

-- Remove the impact bar -1-.

Installation

Install in reverse order of removal. Note the following:

-- Install the bumper. Refer to REAR BUMPER .
